Andamiro Co., LTD.

PARTS_DOLPHIN SHOW

총 79개 파츠

No. 파츠이름 파츠사진 파츠코드 파츠정보
1

AC INPUT

DAC-13H

AC INPUT

MELE0SWI015
2

AC JOIN SUB PCB ASS'Y

공용

AC JOIN SUB PCB ASS'Y

AZZZ0PCB100
3

AC POWER CORD

250V 16A KKP-4819R CE

AC POWER CORD

MELE0ACP008
4

AC POWER CORD UL

125V_10A_SVT 3/18AWG

AC POWER CORD UL

MELE0ACP001
5

AC RECEPTACLE

삼파장 소켓

AC RECEPTACLE

MELE0ARE002
6

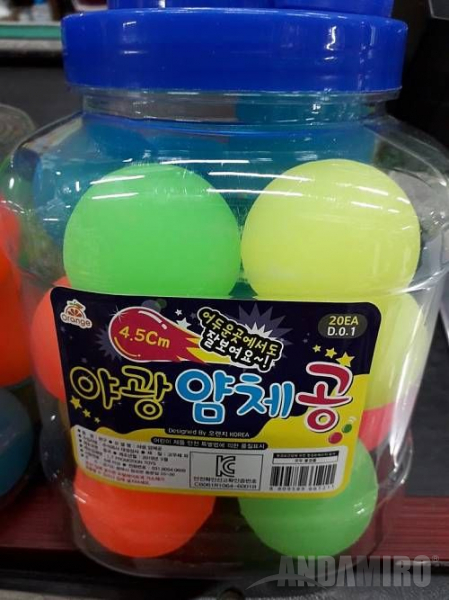

BALL

Φ46-BLUE

BALL

MDOS0RUB002
7

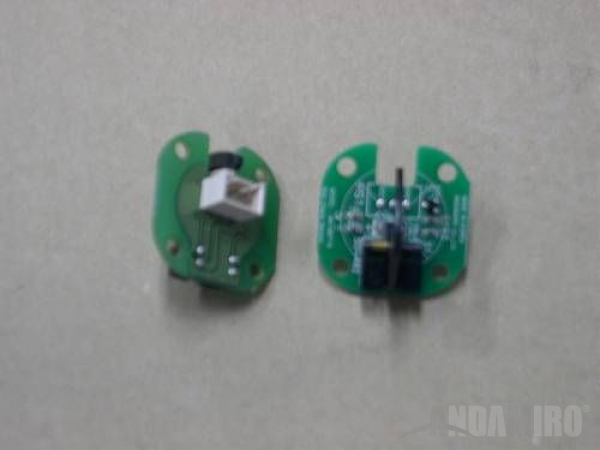

BALL CHECK SENSOR PCB ASS'Y

.

BALL CHECK SENSOR PCB ASS'Y

ADOS0PCB003
8

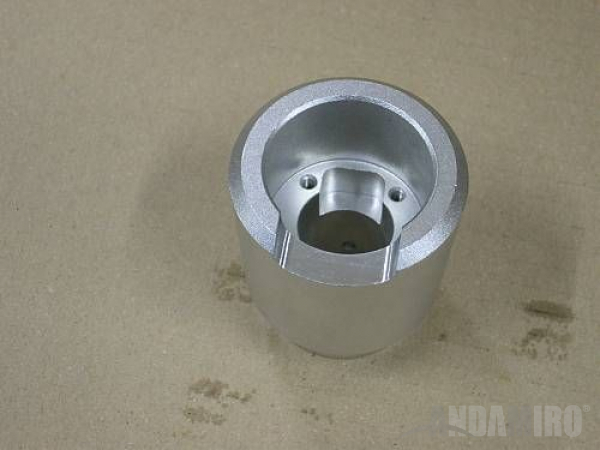

BALL STAY SHAFT

.

BALL STAY SHAFT

MDOS0PRO008
9

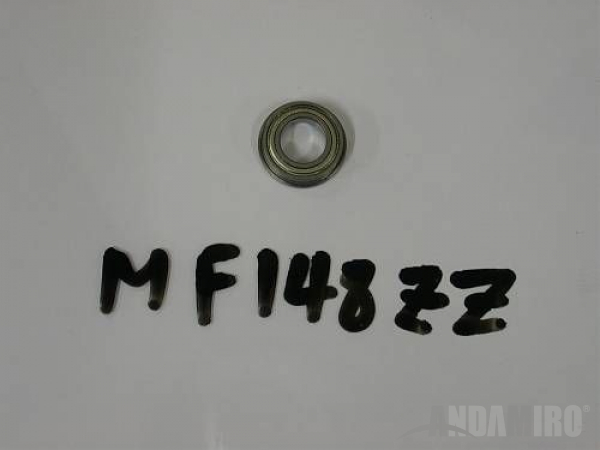

BEARING

MF148ZZ

BEARING

MZZZ0BEA066
10

BUTTON SWITCH

TICKET AM1PB-26SH R12D

BUTTON SWITCH

MMUM0BUT002
11

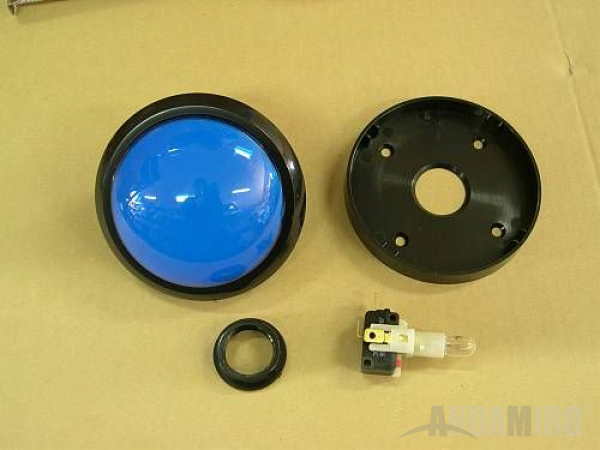

BUTTON SWITCH

CWB 401-BLUE COLOR(Φ100돔)

BUTTON SWITCH

MZZZ0BUT072
12

CAUTION STICKER 45*50

10A-250V

CAUTION STICKER 45*50

MZZZ0STI066
13

COIN BOX SMALL

200*198*107 BLACK

COIN BOX SMALL

MDRE0PLA007
14

COIN SELECTOR

TW-333_WITHOUT FND

COIN SELECTOR

MZZZ0COS045
15

COUNTER

OA127CL W/2P CONNECTOR_20CM WIRE

COUNTER

MZZZ0COU002
16

CREDIT FND PCB ASS'Y

.

CREDIT FND PCB ASS'Y

ADOS0PCB006
17

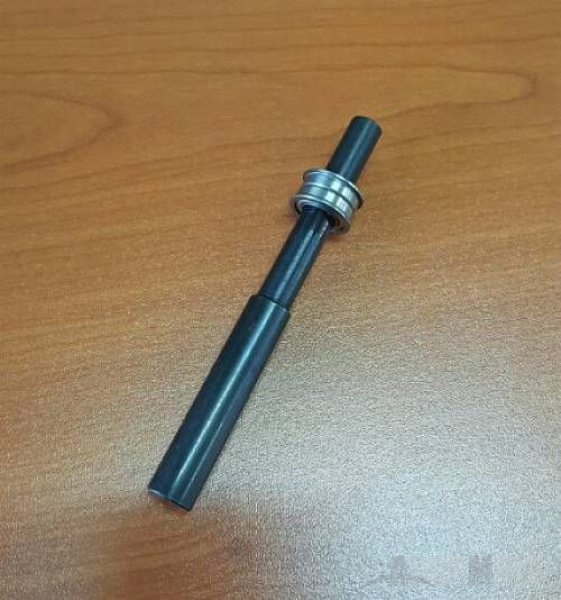

DOLPHIN HINGE SHAFT ASS'Y

DOLPHIN HINGE SHAFT ASS'Y

MDOS0PRO006
18

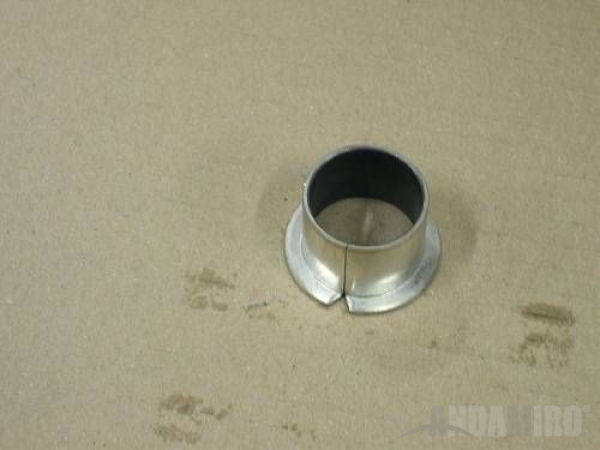

DU BUSHING

MB2420-35FDU

DU BUSHING

MZZZ0BEA070
19

ELECTRONIC BALLAST

220V 20W ONE

ELECTRONIC BALLAST

MELE0BAL001
20

ELECTRONIC BALLAST

110V 20W ONE

ELECTRONIC BALLAST

MELE0BAL010
21

ELECTRONIC BALLAST

220V FPL 36W ONE

ELECTRONIC BALLAST

MELE0BAL016
22

ELECTRONIC BALLAST

110V FPL 36W ONE

ELECTRONIC BALLAST

MELE0BAL025
23

FLUORESCENT LAMP

형광등,FL20SD-20W

FLUORESCENT LAMP

MELE0LAM002
24

FPL LAMP

36W WHITE

FPL LAMP

MELE0LAM028
25

FPL LAMP SOCKET ASS'Y

WITH SUS,SWING

FPL LAMP SOCKET ASS'Y

AELE0SOC001
26

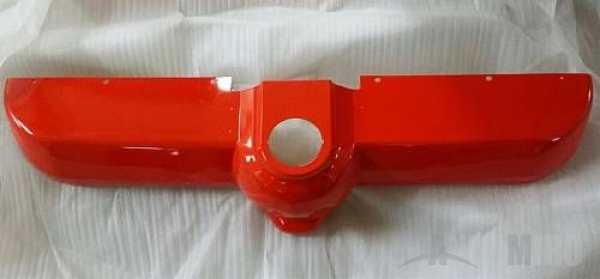

FRONT COVER MOLDING

.

FRONT COVER MOLDING

MDOS0MOL004
27

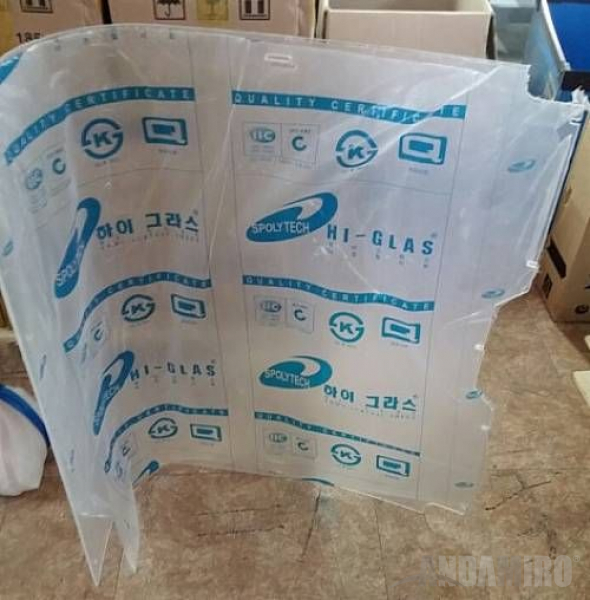

FRONT R DOOR ACRYL

.

FRONT R DOOR ACRYL

MDOS0MOL003
28

FUSE

0218010.MXP 250V,10A,4PA

FUSE

MELE0FUS018
29

GEAR BOX

K6G30C

GEAR BOX

MZZZ0MOS011
30

GUIDE RAIL

300MM

GUIDE RAIL

MMUN0000004
31

JACKPOT FND PCB ASS'Y

FND1217_5

JACKPOT FND PCB ASS'Y

ADOS0PCB005
32

KEY ASS'Y 6001

6001 키뭉치만

KEY ASS'Y 6001

MZZZ0KEY075
33

KEY ASS'Y 7001

7001 키뭉치만

KEY ASS'Y 7001

MZZZ0KEY076
34

KEY ONLY 6001

2EA 1SET _WITH RING

KEY ONLY 6001

MZZZ0KEY014
35

KEY ONLY 7001

2EA 1SET_WITH RING

KEY ONLY 7001

MZZZ0KEY035
36

LAMP

3WAVE(220V 20W)

LAMP

MELE0LAM004
37

LAMP

3WAVE(110V 20W)

LAMP

MELE0LAM005
38

MICRO SWITCH

CNR-05H-03 ZIPPY-FOR COIN

MICRO SWITCH

MELE0MIC002
39

MOTOR

KGDG15N1_03 WITH 5025-2P

MOTOR

MZZZ0MOT032
40

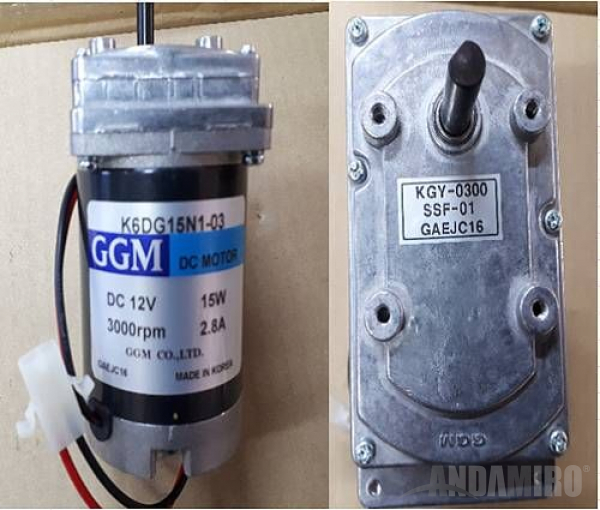

MOTOR

KGY-300-12V,15W

MOTOR

MZZZ0MOT046
41

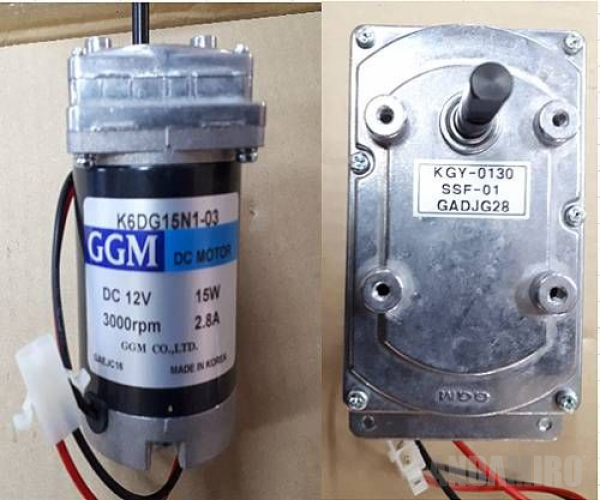

MOTOR

KGY-130-12V,15W

MOTOR

MZZZ0MOT051
42

NOISE FILTER

ES1-F05

NOISE FILTER

MELE0NOI005
43

PHOTO INT-1 PCB ASS'Y

CIRCLE RAMA

PHOTO INT-1 PCB ASS'Y

ACIR0PCB011
44

PHOTO INT-2 PCB ASS'Y

WINNER,WON,CIR공용

PHOTO INT-2 PCB ASS'Y

AWIW0PCB009
45

PLUG CUSHION RUBBER

공진 [KD-96R-9] 6MM

PLUG CUSHION RUBBER

MCIR0RUB001
46

POWER SMPS

D120A 12V,5V

POWER SMPS

MELE0SMP045
47

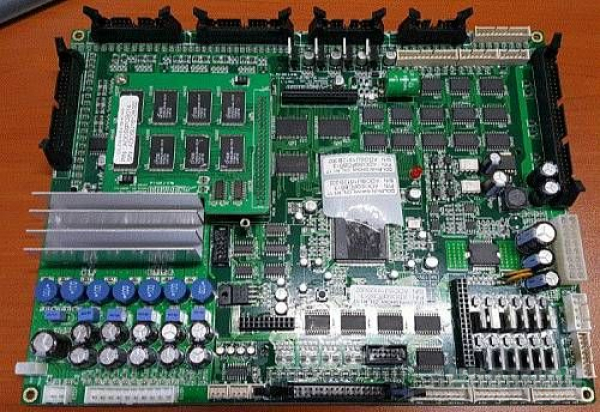

PUBLIC MAIN PCB ASS'Y

DOLPHIN SHOW

PUBLIC MAIN PCB ASS'Y

ADOS0PCB013

[PUBLIC MAIN PCB ASS'Y] EMI

NFM21PC104R1E3D

[PUBLIC MAIN PCB ASS'Y] EMI

PCAP0EMI006

[PUBLIC MAIN PCB ASS'Y] EMI

NFM21CC471R1H3D

[PUBLIC MAIN PCB ASS'Y] EMI

PCAP0EMI007

[PUBLIC MAIN PCB ASS'Y] HEAT SINK

30.2*79.8

[PUBLIC MAIN PCB ASS'Y] HEAT SINK

PHEA0ZZZ010

[PUBLIC MAIN PCB ASS'Y] IC NSP5112

NSP5112

[PUBLIC MAIN PCB ASS'Y] IC NSP5112

PICS0AMP005

[PUBLIC MAIN PCB ASS'Y] IC-SOUND(PQFP-64)

NSP-6241B

[PUBLIC MAIN PCB ASS'Y] IC-SOUND(PQFP-64)

PICS0AMP006

[PUBLIC MAIN PCB ASS'Y] UPP PCB

AM110127

[PUBLIC MAIN PCB ASS'Y] UPP PCB

PPCB0MUL048
48

PUSH BUTTON SWITCH

DS-412R ROSH

PUSH BUTTON SWITCH

MELE0PUS006
49

RENCH_L

4MM

RENCH_L

MXXX0REN002
50

RENCH_L

3MM

RENCH_L

MXXX0REN004
51

ROCKER SWITCH

T-125 4P

ROCKER SWITCH

MELE0SWI004
52

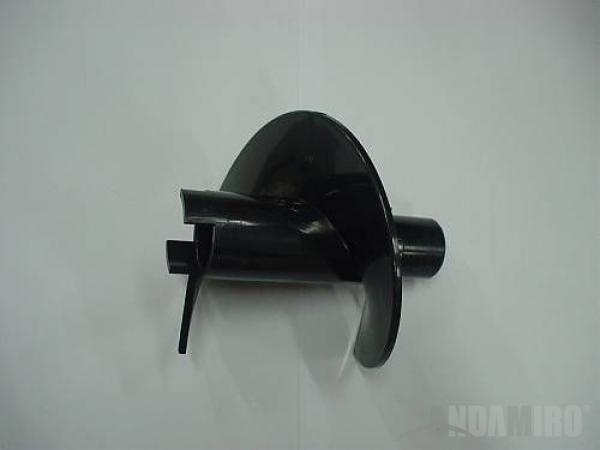

SCREW

PC ABS BLACK

SCREW

MDOS0PLA001
53

SETUP LCD PCB ASS'Y

UNISYSTECH

SETUP LCD PCB ASS'Y

AZZZ0PCB113
54

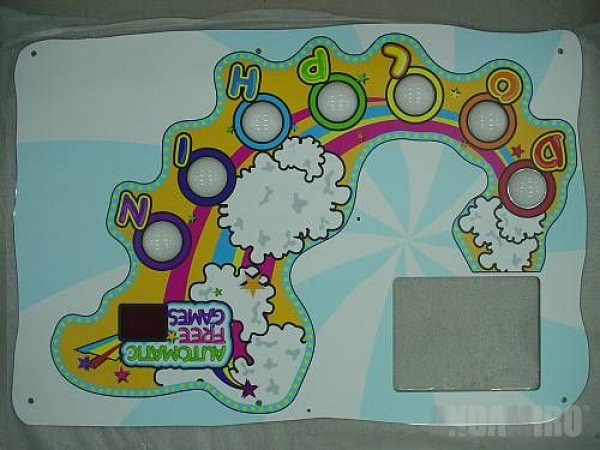

SHOW TIME ACRYL

배접 OR 인쇄

SHOW TIME ACRYL

MDOS0ACR008
55

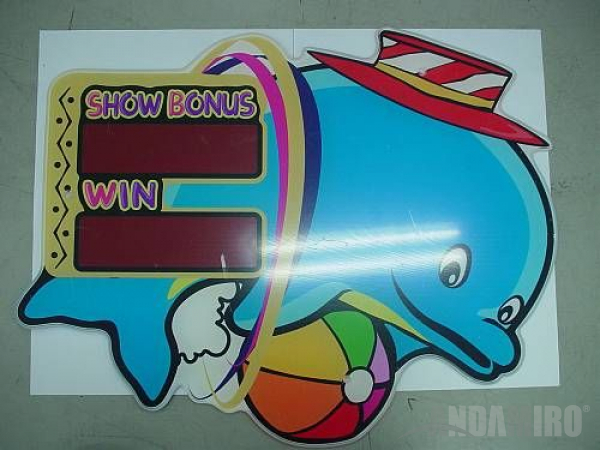

SHOW TIME DECO ACRYL-B

배접 OR 인쇄

SHOW TIME DECO ACRYL-B

MDOS0ACR010
56

SHOW TIME LED CONTROL PCB ASS'Y

.

SHOW TIME LED CONTROL PCB ASS'Y

ADOS0PCB008
57

SHOW TIME LED PCB ASS'Y

.

SHOW TIME LED PCB ASS'Y

ADOS0PCB007
58

SIDE EDGE MOLDING-L

.

SIDE EDGE MOLDING-L

MDOS0MOL007
59

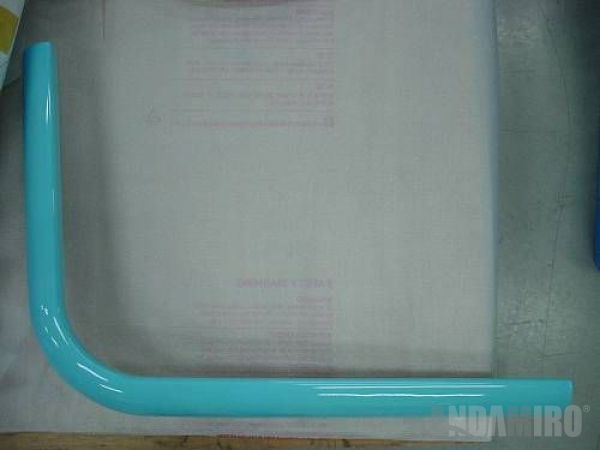

SIDE EDGE MOLDING-R

.

SIDE EDGE MOLDING-R

MDOS0MOL002
60

SMPS BKT

MEANWELL

SMPS BKT

MZZZ0MEP048
61

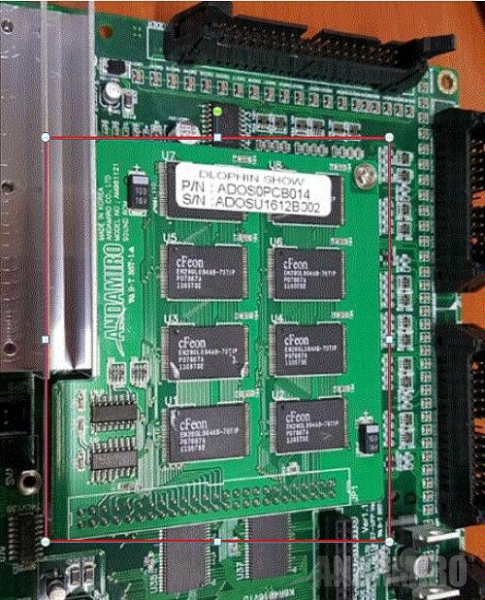

SOUND ROM PCB ASS'Y

DOLPHIN SHOW

SOUND ROM PCB ASS'Y

ADOS0PCB014

[SOUND ROM PCB ASS'Y] IC-ROM(SMD)

EN29GL064AB-70TIP

[SOUND ROM PCB ASS'Y] IC-ROM(SMD)

PICS0ROM005

[SOUND ROM PCB ASS'Y] SOUND ROM AM081121

공용

[SOUND ROM PCB ASS'Y] SOUND ROM AM081121

PPCB0DOU193
62

SPEAKER

MID4.5"+TW1/2" 8Ω

SPEAKER

MZZZ0SPE021
63

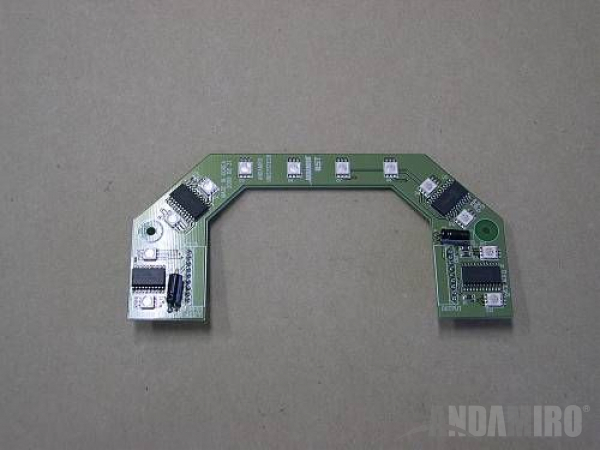

SPEAKER LED PCB ASS'Y

.

SPEAKER LED PCB ASS'Y

ADOS0PCB012
64

TERMINAL BRACKET

SPEC

TERMINAL BRACKET

MMUN0PRO008
65

TICKET DISPENSER

TL-002H

TICKET DISPENSER

MZZZ0TID007
66

VOLUME KNOB

CAP BLUE

VOLUME KNOB

MELE0VOL007
67

VOLUME PCB ASS'Y

3CH

VOLUME PCB ASS'Y

APUJ0PCB005
68

WARINING 80*40

SERVIED POWER SUPPLY

WARINING 80*40

MZZZ0STI065
69

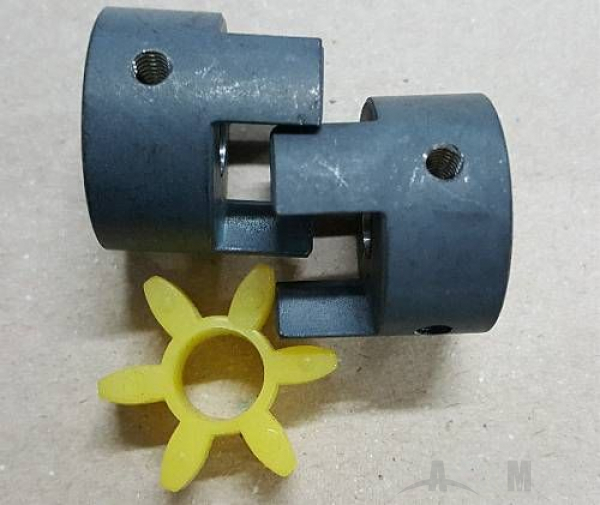

WHEEL MOTOR COUPLING

.

WHEEL MOTOR COUPLING

MDOS0PRO002
70

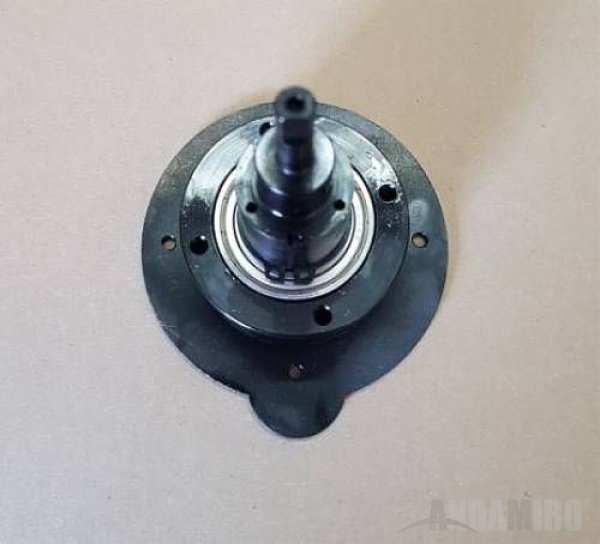

WHEEL ROTATE ASS'Y

판금용접

WHEEL ROTATE ASS'Y

MDOS0PRO001
71

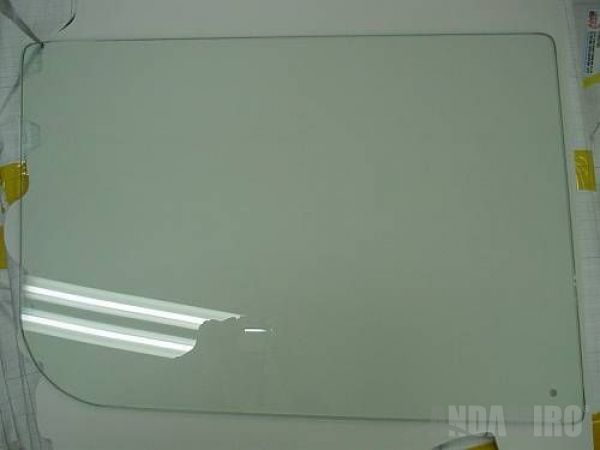

WINDOW CABINET GLASS

DOLPHIN SHOW

WINDOW CABINET GLASS

MDOS0GLA001
