1 |
|
M2220HUN013
|
|
2 |
|
AC INPUT
MELE0SWI015
|
|
3 |
AC POWER CORD UL
125V_10A_SVT 3/18AWG
|
AC POWER CORD UL
MELE0ACP001
|
|
4 |
|

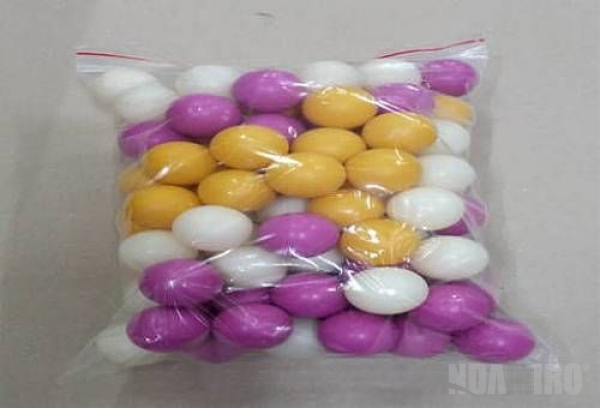

BALL
MHCH0PAR062
|
|
5 |

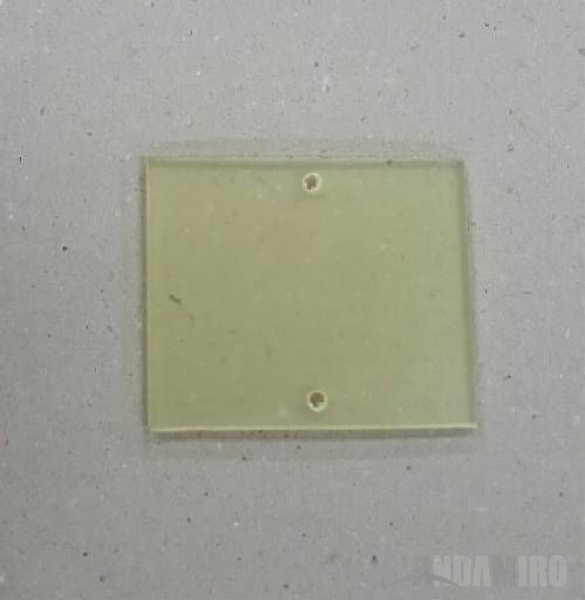

BALL HOPPER CHUTE URETHANE
.
|
BALL HOPPER CHUTE URETHANE
MHCH0PRO005
|
|
6 |

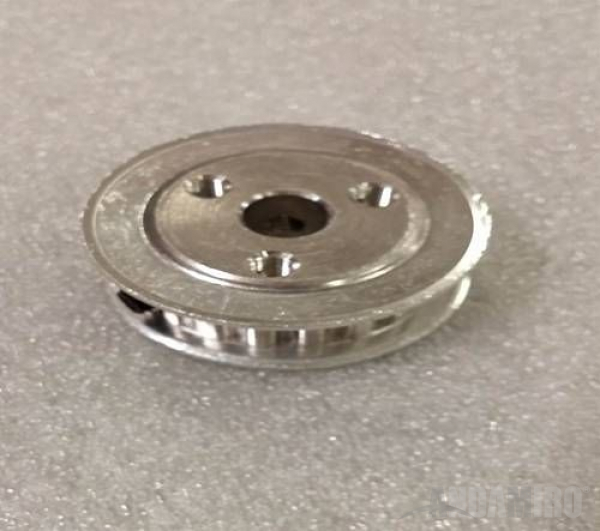

BALL HOPPER ENCODER PULLEY
.
|
BALL HOPPER ENCODER PULLEY
MHCH0PAR004
|
|
7 |

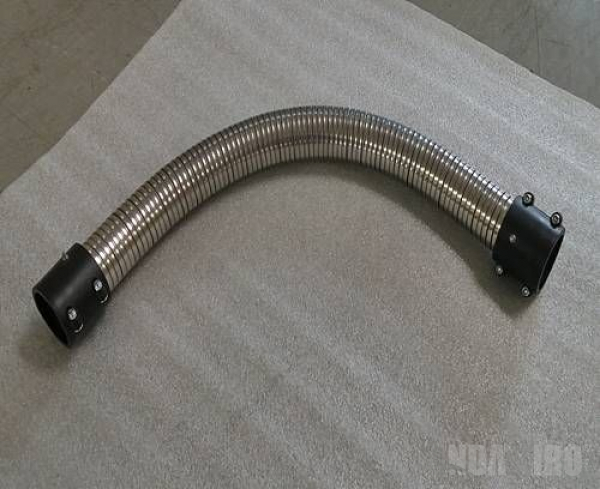

BALL HOPPER FLEXIBLE TUBE
.
|
BALL HOPPER FLEXIBLE TUBE
MHCH0PAR007
|
|
8 |

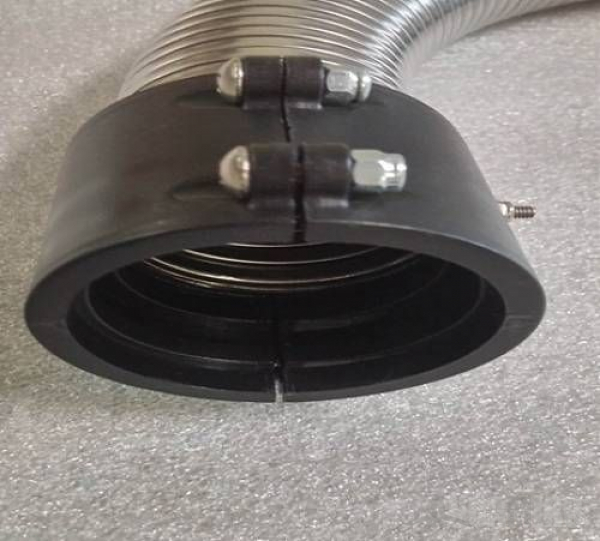

BALL HOPPER FLEXIBLE TUBE CLAMPER
.
|
BALL HOPPER FLEXIBLE TUBE CLAMPER
MHCH0PAR008
|
|
9 |
|

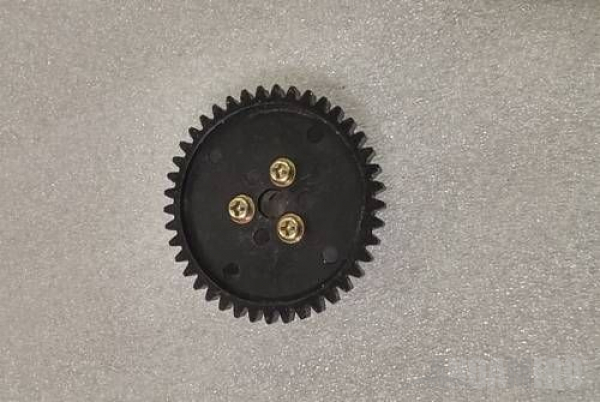

BALL HOPPER GEAR
MHCH0PAR001
|
|
10 |

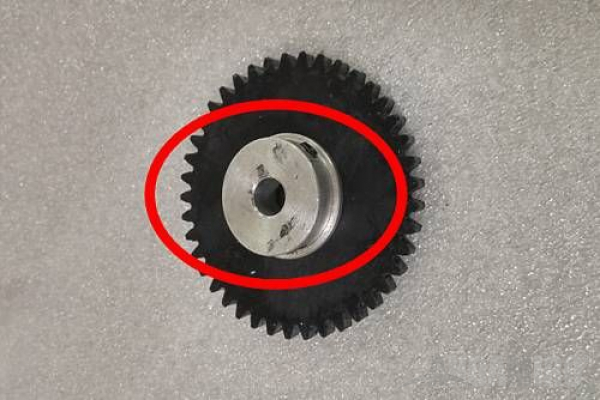

BALL HOPPER GEAR SPACER
.
|
BALL HOPPER GEAR SPACER
MHCH0PAR002
|
|
11 |

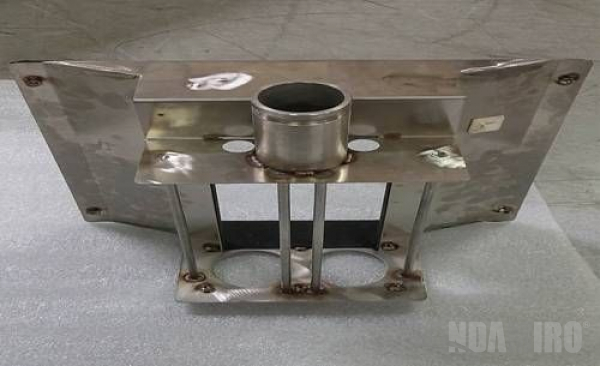

BALL HOPPER MAIN BKT ASS'Y
.
|
BALL HOPPER MAIN BKT ASS'Y
MHCH0PAR003
|
|
12 |
|

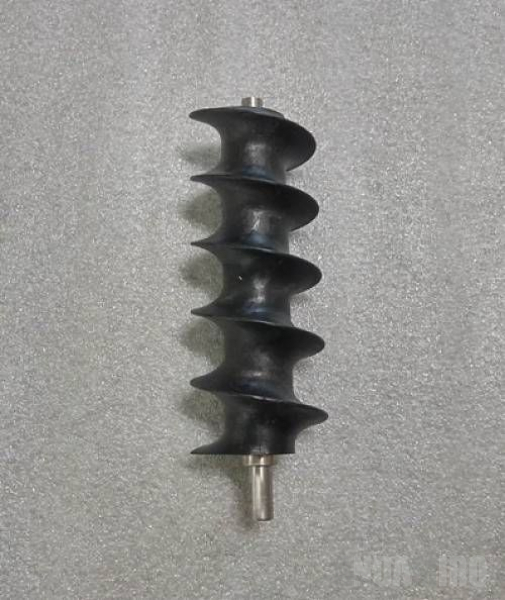

BALL HOPPER SCREW-L
MHCH0PAR005
|
|
13 |
|

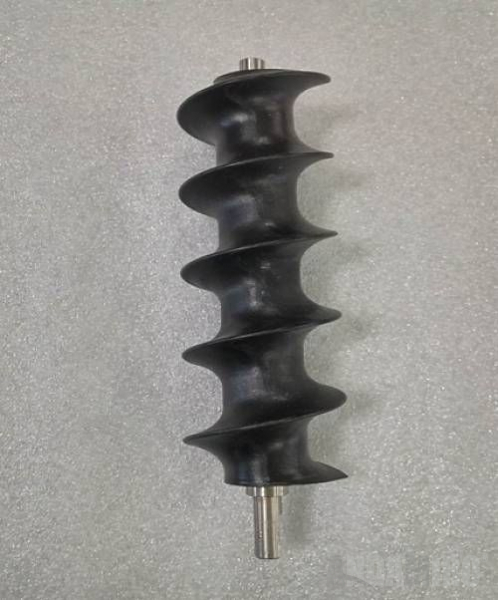

BALL HOPPER SCREW-R
MHCH0PAR006
|
|
14 |

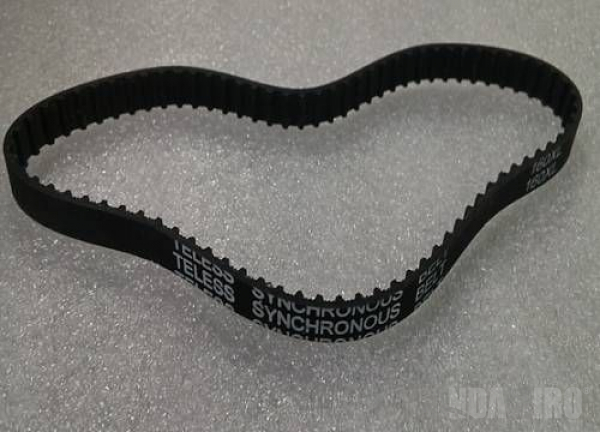

BALL HOPPER TIMMING BELT
160XL
|
BALL HOPPER TIMMING BELT
MHCH0PAR009
|
|
15 |

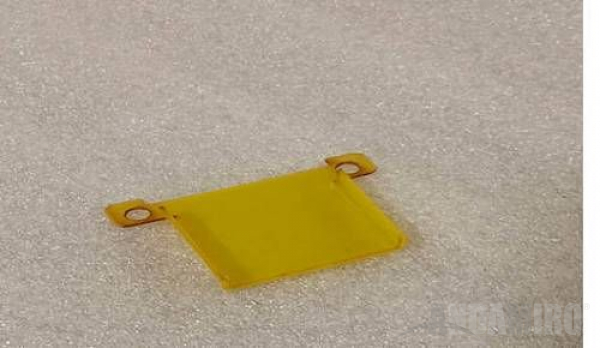

BALL IN GUIDE
PET-1.0T , YELLOW
|
BALL IN GUIDE
MHCH0PAR052
|
|
16 |

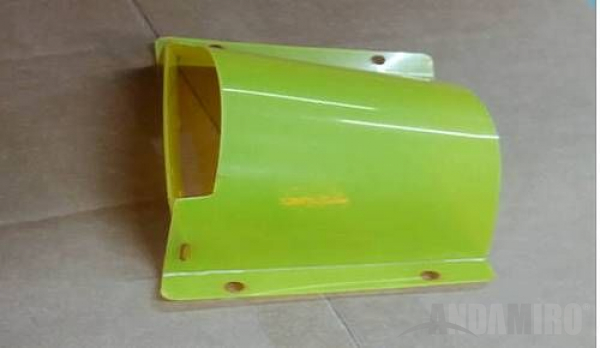

BALL OUT COVER
PET-1.0T , YELLOW
|
BALL OUT COVER
MHCH0PAR053
|
|
17 |
|

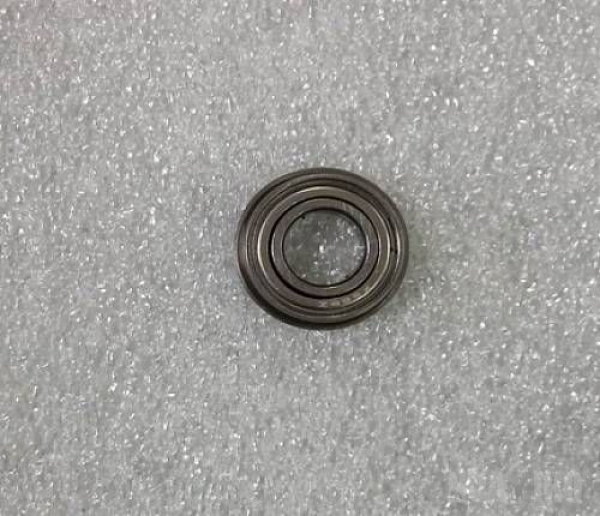

BEARING
MHCH0PAR010
|
|
18 |
|

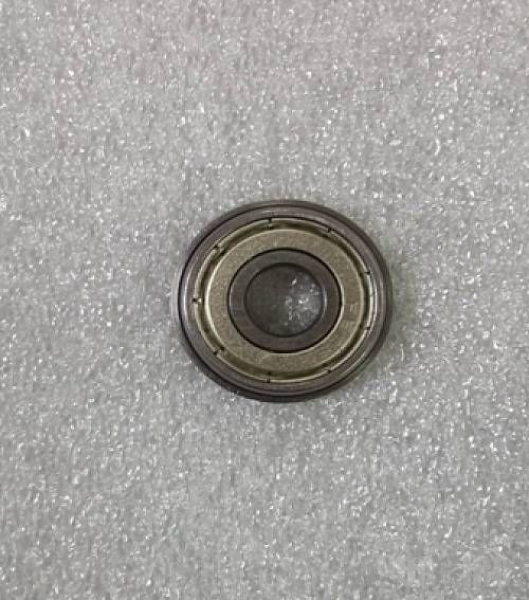

BEARING
MHCH0PAR011
|
|
19 |
|
BEARING
MZZZ0BEA111
|
|
20 |
|

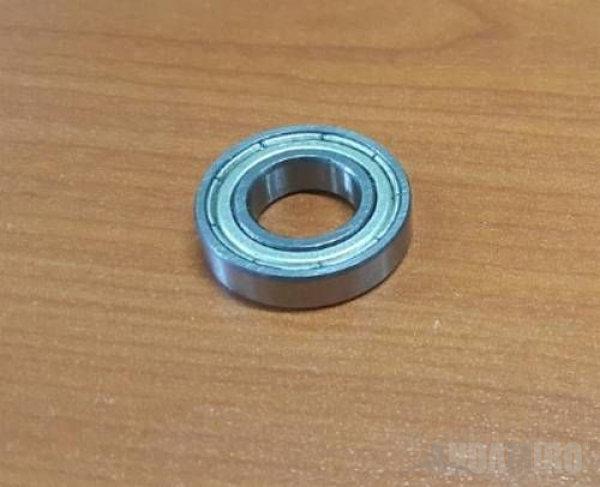

BEARING
MZZZ0BEA112
|
|
21 |

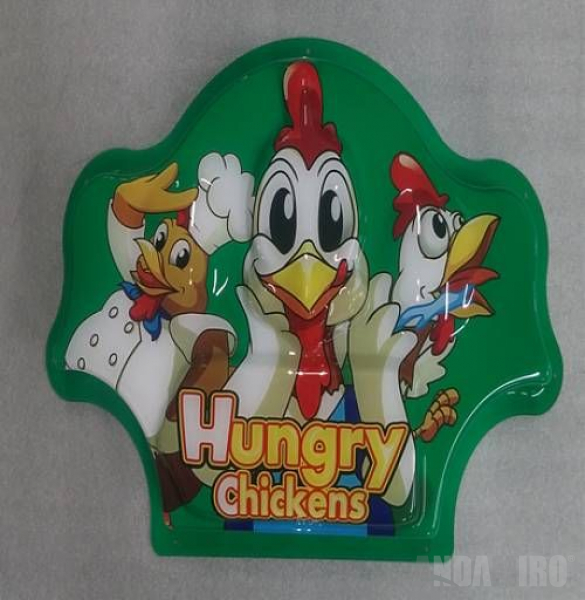

BILLBOARD INNER MOLDING
.
|
BILLBOARD INNER MOLDING
MHCH0PAR013
|
|
22 |
|

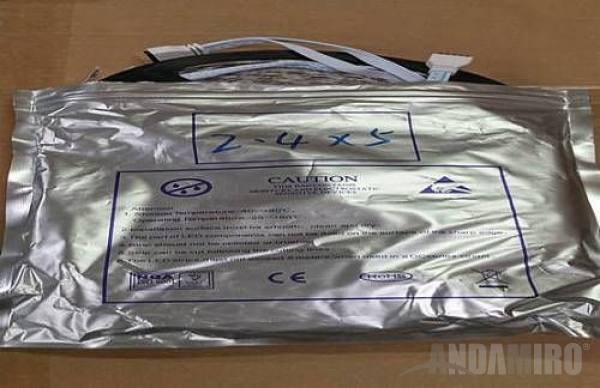

BILLBOARD LED PCB
MHCH0PAR065
|
|
23 |

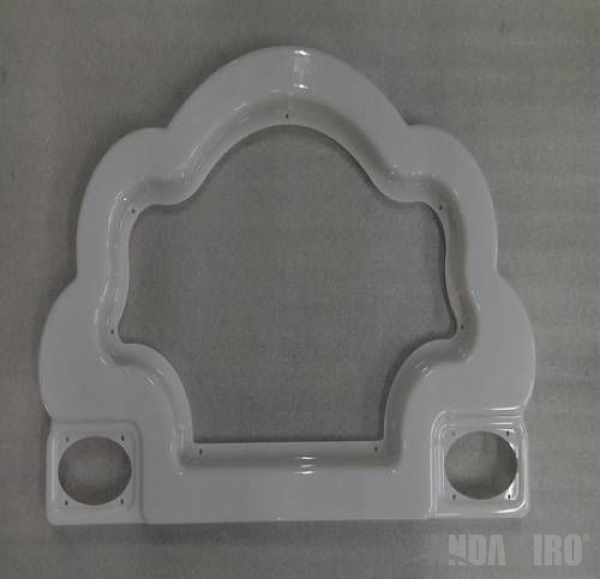

BILLBOARD OUTER MOLDING
.
|
BILLBOARD OUTER MOLDING
MHCH0PAR014
|
|
24 |

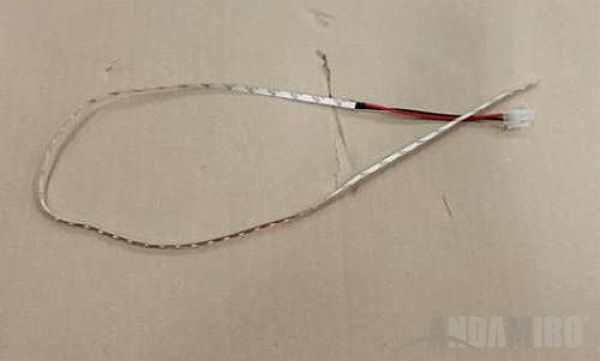

BUTTON INNER LED PCB
590MM
|
BUTTON INNER LED PCB
MHCH0PAR068
|
|
25 |
BUTTON SWITCH
TICKET AM1PB-26SH R12D
|
BUTTON SWITCH
MMUM0BUT002
|
|
26 |

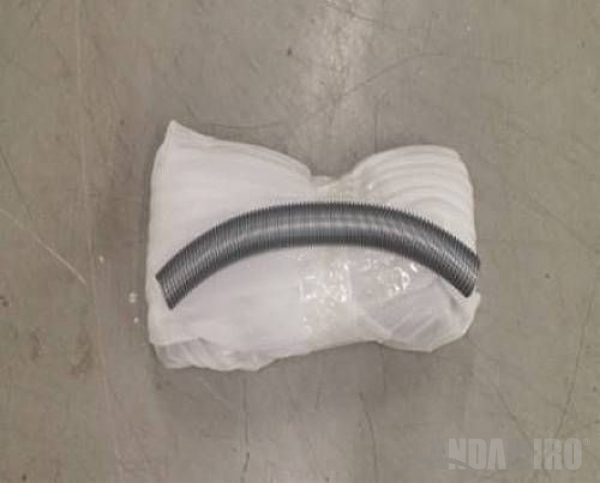

CHICKEN BALL OUT TUBE-A
Ø45X550MM
|
CHICKEN BALL OUT TUBE-A
MHCH0PAR066
|
|
27 |

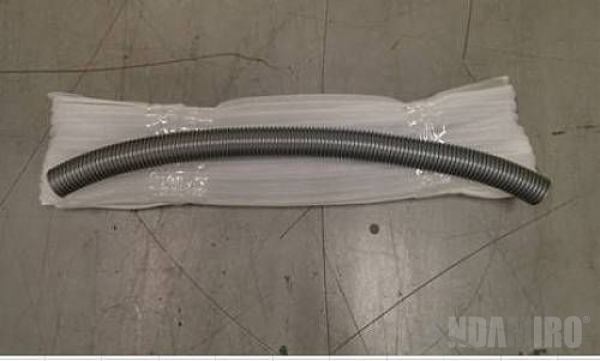

CHICKEN BALL OUT TUBE-B
Ø45X750MM
|
CHICKEN BALL OUT TUBE-B
MHCH0PAR067
|
|
28 |

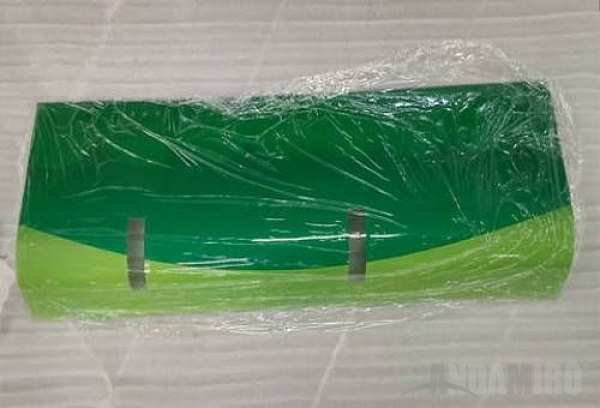

CHICKEN LOWER COVER ACRYL
.
|
CHICKEN LOWER COVER ACRYL
MHCH0PAR063
|
|
29 |

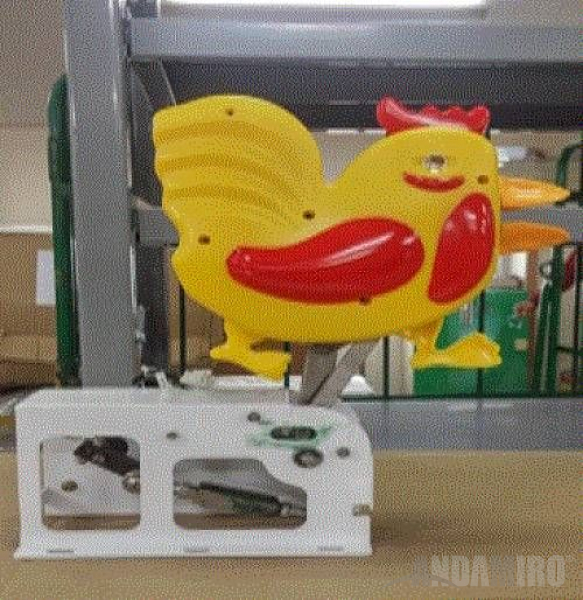

CHICKEN MECHANISM ASS'Y
.
|
CHICKEN MECHANISM ASS'Y
AHCH0ASS005
|
|
30 |

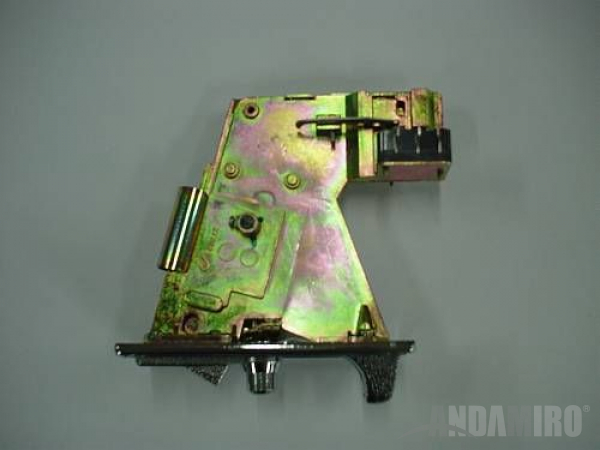

COIN SELECTOR
CEC HS-03CS+SWITCH
|
COIN SELECTOR
MZZZ0COS028
|
|
31 |
|

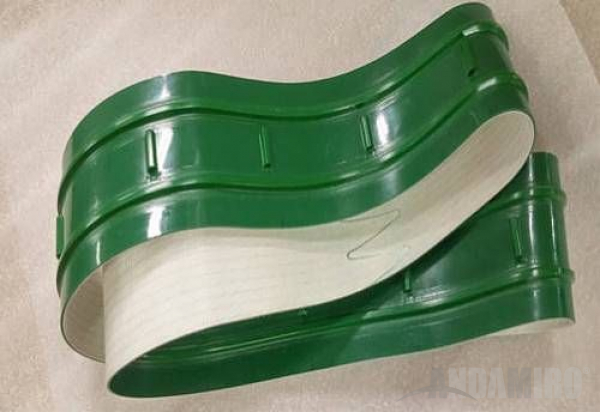

CONVEYOR BELT
MHCH0PAR044
|
|
32 |
|

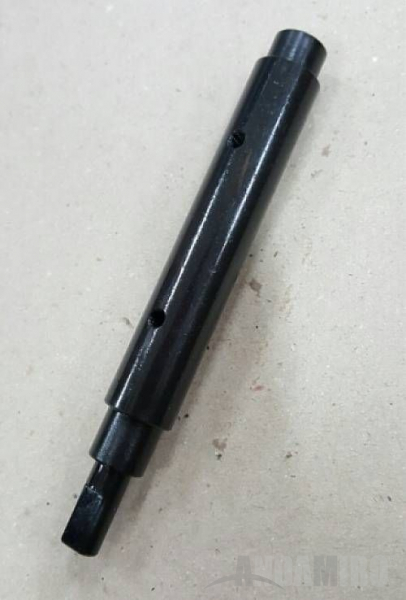

CONVEYOR IDLE ROLLER
MHCH0PRO002
|
|
33 |

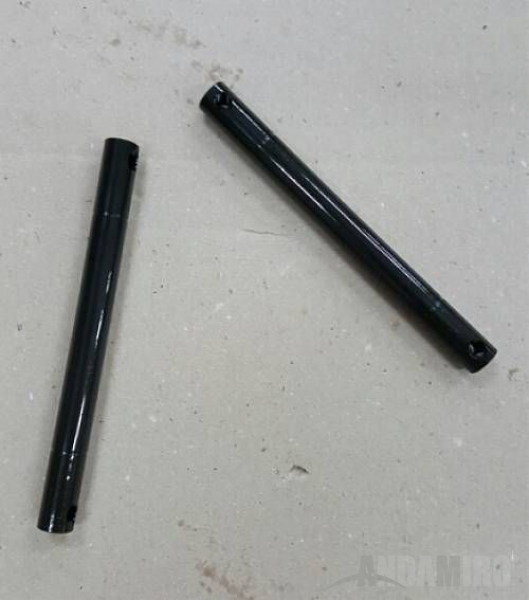

CONVEYOR IDLE ROLLER SHAFT
.
|
CONVEYOR IDLE ROLLER SHAFT
MHCH0PRO001
|
|
34 |
|

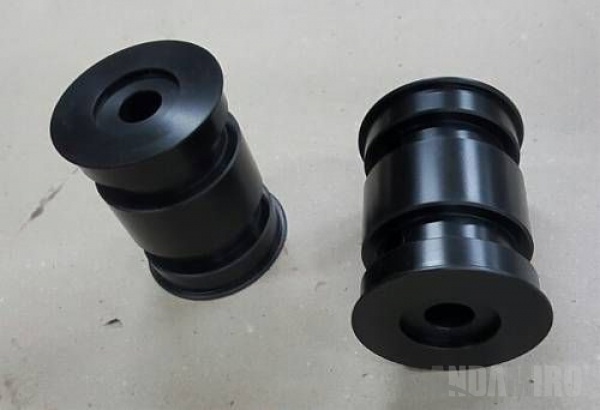

CONVEYOR MOTOR ROLLER
MHCH0PRO004
|
|
35 |
CONVEYOR MOTOR ROLLER SHAFT
.
|
CONVEYOR MOTOR ROLLER SHAFT
MHCH0PRO003
|
|
36 |

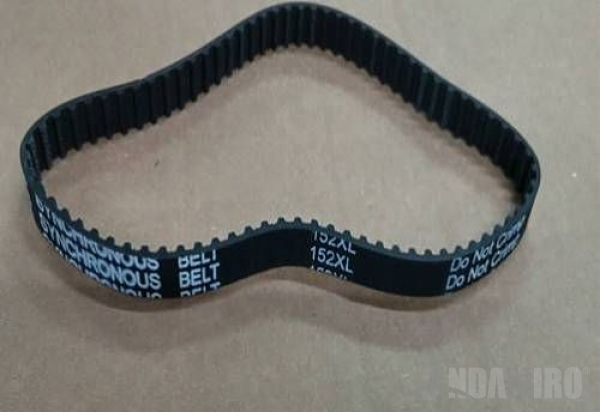

CONVEYOR TIMMING BELT
152XL
|
CONVEYOR TIMMING BELT
MHCH0PAR046
|
|
37 |
COUNTER
OA127CL W/2P CONNECTOR_20CM WIRE
|
COUNTER
MZZZ0COU002
|
|
38 |
FLEXIBLE LED
SMD3528 60PCS GREEN
|
FLEXIBLE LED
AELE0LED002
|
|
39 |

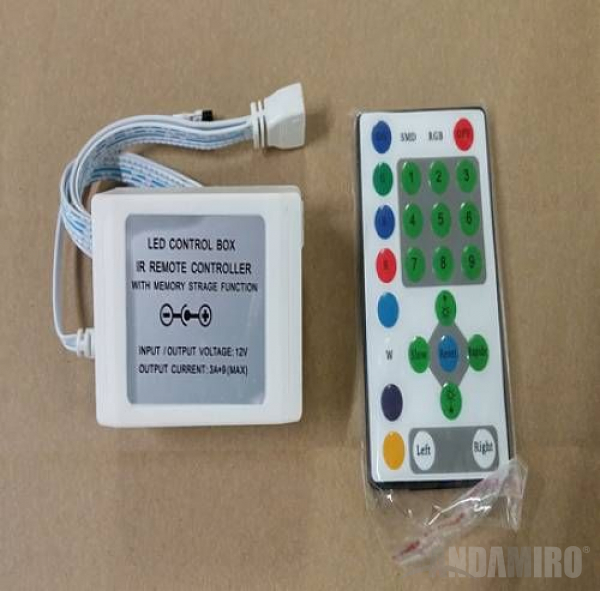

FLEXIBLE LED PCB CONTROL BOX
.
|
FLEXIBLE LED PCB CONTROL BOX
MHCH0PAR015
|
|
40 |

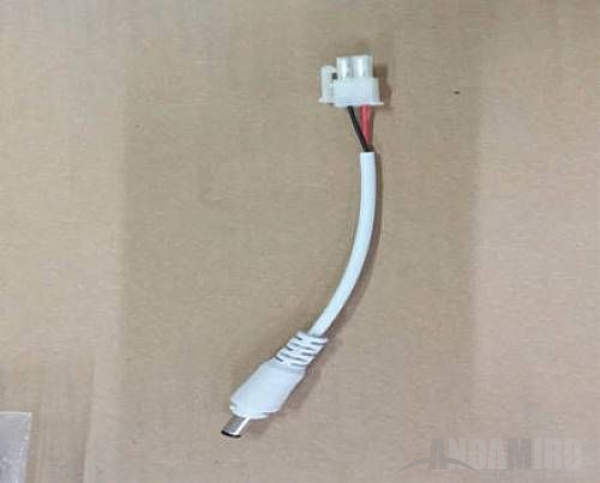

FLEXIBLE LED PCB CONTROL BOX HARNESS
.
|
FLEXIBLE LED PCB CONTROL BOX HARNESS
MHCH0PAR016
|
|
41 |

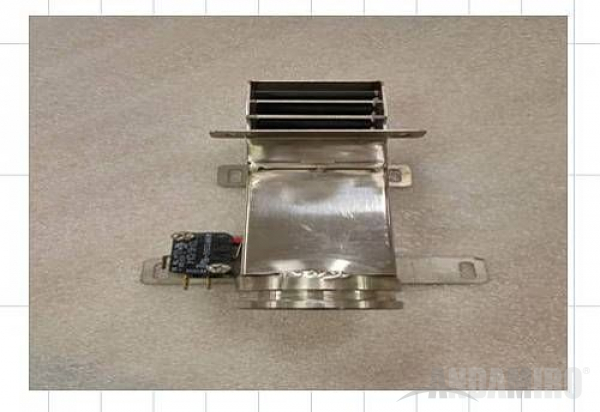

FLEXIBLE TUBE UPPER FIX BKT
.
|
FLEXIBLE TUBE UPPER FIX BKT
MHCH0PAR054
|
|
42 |
FND PCB ASS'Y
2941-2(STRAIGHT)
|
FND PCB ASS'Y
AFND0PCB003
|
|
43 |

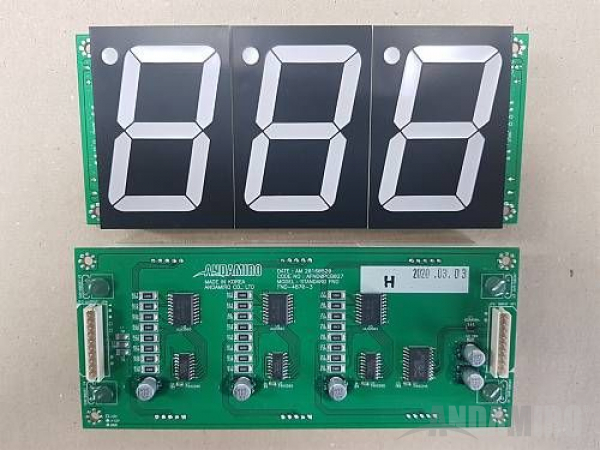

FND PCB ASS'Y
4870-3(STRAIGHT)
|
FND PCB ASS'Y
AFND0PCB027
|
|
44 |

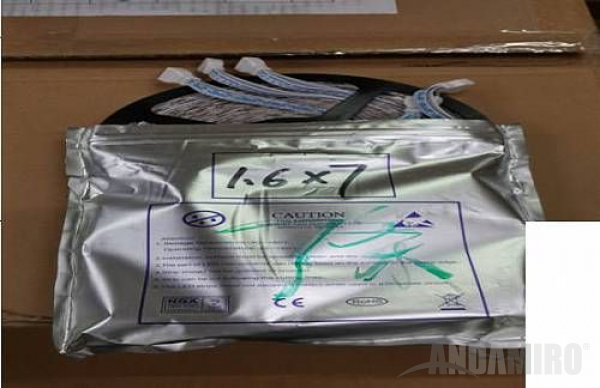

FRONT SIDE MOLDING LED PCB
1.6M
|
FRONT SIDE MOLDING LED PCB
MHCH0PAR064
|
|
45 |
|

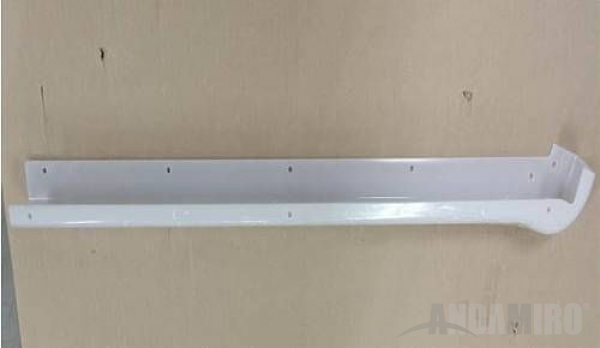

FRONT SIDE MOLDING-L
MHCH0PAR055
|
|
46 |
|

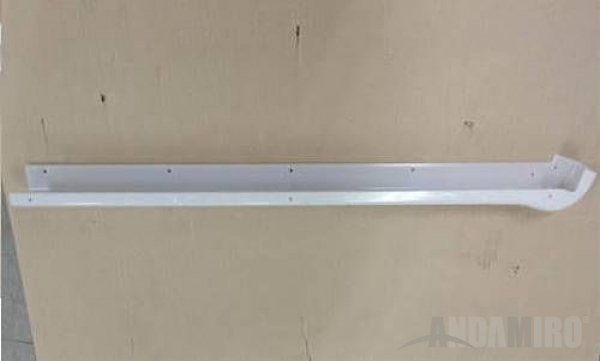

FRONT SIDE MOLDING-R
MHCH0PAR056
|
|
47 |
FUSE
0218010.MXP 250V,10A,4PA
|
FUSE
MELE0FUS018
|
|
48 |
|
HUNGRY CHICKEN KIT
A2220HUN001
|
|
|
[HUNGRY CHICKEN KIT]
BALL
PLASTIC
|
[HUNGRY CHICKEN KIT]
BALL
MHCH0PAR062
|
|
|
[HUNGRY CHICKEN KIT]
BALL HOPPER ENCODER PULLEY
.
|
[HUNGRY CHICKEN KIT]
BALL HOPPER ENCODER PULLEY
MHCH0PAR004
|
|
|
[HUNGRY CHICKEN KIT]
BALL HOPPER FLEXIBLE TUBE
.
|
[HUNGRY CHICKEN KIT]
BALL HOPPER FLEXIBLE TUBE
MHCH0PAR007
|
|
|
[HUNGRY CHICKEN KIT]
BALL HOPPER FLEXIBLE TUBE CLAMPER
.
|
[HUNGRY CHICKEN KIT]
BALL HOPPER FLEXIBLE TUBE CLAMPER
MHCH0PAR008
|
|
|
[HUNGRY CHICKEN KIT]
BALL HOPPER GEAR
.
|
[HUNGRY CHICKEN KIT]
BALL HOPPER GEAR
MHCH0PAR001
|
|
|
[HUNGRY CHICKEN KIT]
BALL HOPPER GEAR SPACER
.
|
[HUNGRY CHICKEN KIT]
BALL HOPPER GEAR SPACER
MHCH0PAR002
|
|
|
[HUNGRY CHICKEN KIT]
BALL HOPPER MAIN BKT ASS'Y
.
|
[HUNGRY CHICKEN KIT]
BALL HOPPER MAIN BKT ASS'Y
MHCH0PAR003
|
|
|
[HUNGRY CHICKEN KIT]
BALL HOPPER SCREW-L
.
|
[HUNGRY CHICKEN KIT]
BALL HOPPER SCREW-L
MHCH0PAR005
|
|
|
[HUNGRY CHICKEN KIT]
BALL HOPPER SCREW-R
.
|
[HUNGRY CHICKEN KIT]
BALL HOPPER SCREW-R
MHCH0PAR006
|
|
|
[HUNGRY CHICKEN KIT]
BALL HOPPER TIMMING BELT
160XL
|
[HUNGRY CHICKEN KIT]
BALL HOPPER TIMMING BELT
MHCH0PAR009
|
|
|
[HUNGRY CHICKEN KIT]
BALL IN GUIDE
PET-1.0T , YELLOW
|
[HUNGRY CHICKEN KIT]
BALL IN GUIDE
MHCH0PAR052
|
|
|
[HUNGRY CHICKEN KIT]
BALL OUT COVER
PET-1.0T , YELLOW
|
[HUNGRY CHICKEN KIT]
BALL OUT COVER
MHCH0PAR053
|
|
|
[HUNGRY CHICKEN KIT]
BEARING
F688Z
|
[HUNGRY CHICKEN KIT]
BEARING
MHCH0PAR010
|
|
|
[HUNGRY CHICKEN KIT]
BEARING
F608Z
|
[HUNGRY CHICKEN KIT]
BEARING
MHCH0PAR011
|
|
|
[HUNGRY CHICKEN KIT]
BILLBOARD INNER MOLDING
.
|
[HUNGRY CHICKEN KIT]
BILLBOARD INNER MOLDING
MHCH0PAR013
|
|
|
[HUNGRY CHICKEN KIT]
BILLBOARD LED PCB
2.4M
|
[HUNGRY CHICKEN KIT]
BILLBOARD LED PCB
MHCH0PAR065
|
|
|
[HUNGRY CHICKEN KIT]
BILLBOARD OUTER MOLDING
.
|
[HUNGRY CHICKEN KIT]
BILLBOARD OUTER MOLDING
MHCH0PAR014
|
|
|
[HUNGRY CHICKEN KIT]
BUTTON INNER LED PCB
590MM
|
[HUNGRY CHICKEN KIT]
BUTTON INNER LED PCB
MHCH0PAR068
|
|
|
[HUNGRY CHICKEN KIT]
CHICKEN BALL OUT TUBE-A
Ø45X550MM
|
[HUNGRY CHICKEN KIT]
CHICKEN BALL OUT TUBE-A
MHCH0PAR066
|
|
|
[HUNGRY CHICKEN KIT]
CHICKEN BALL OUT TUBE-B
Ø45X750MM
|
[HUNGRY CHICKEN KIT]
CHICKEN BALL OUT TUBE-B
MHCH0PAR067
|
|
|
[HUNGRY CHICKEN KIT]
CHICKEN LOWER COVER ACRYL
.
|
[HUNGRY CHICKEN KIT]
CHICKEN LOWER COVER ACRYL
MHCH0PAR063
|
|
|
[HUNGRY CHICKEN KIT]
CHICKEN MECHANISM ASS'Y
.
|
[HUNGRY CHICKEN KIT]
CHICKEN MECHANISM ASS'Y
AHCH0ASS005
|
|
|
[HUNGRY CHICKEN KIT]
CONVEYOR BELT
.
|
[HUNGRY CHICKEN KIT]
CONVEYOR BELT
MHCH0PAR044
|
|
|
[HUNGRY CHICKEN KIT]
CONVEYOR TIMMING BELT
152XL
|
[HUNGRY CHICKEN KIT]
CONVEYOR TIMMING BELT
MHCH0PAR046
|
|
|
[HUNGRY CHICKEN KIT]
FLEXIBLE LED PCB CONTROL BOX
.
|
[HUNGRY CHICKEN KIT]
FLEXIBLE LED PCB CONTROL BOX
MHCH0PAR015
|
|
|
[HUNGRY CHICKEN KIT]
FLEXIBLE LED PCB CONTROL BOX HARNESS
.
|
[HUNGRY CHICKEN KIT]
FLEXIBLE LED PCB CONTROL BOX HARNESS
MHCH0PAR016
|
|
|
[HUNGRY CHICKEN KIT]
FLEXIBLE TUBE UPPER FIX BKT
.
|
[HUNGRY CHICKEN KIT]
FLEXIBLE TUBE UPPER FIX BKT
MHCH0PAR054
|
|
|
[HUNGRY CHICKEN KIT]
FRONT SIDE MOLDING LED PCB
1.6M
|
[HUNGRY CHICKEN KIT]
FRONT SIDE MOLDING LED PCB
MHCH0PAR064
|
|
|
[HUNGRY CHICKEN KIT]
FRONT SIDE MOLDING-L
.
|
[HUNGRY CHICKEN KIT]
FRONT SIDE MOLDING-L
MHCH0PAR055
|
|
|
[HUNGRY CHICKEN KIT]
FRONT SIDE MOLDING-R
.
|
[HUNGRY CHICKEN KIT]
FRONT SIDE MOLDING-R
MHCH0PAR056
|
|
|
[HUNGRY CHICKEN KIT]
LOWER SIDE DECORATION ASS'Y
.
|
[HUNGRY CHICKEN KIT]
LOWER SIDE DECORATION ASS'Y
AHCH0ASS007
|
|
|
[HUNGRY CHICKEN KIT]
MOTOR BALL HOPPER
60JB25G0832 / 55ZY24-15-01
|
[HUNGRY CHICKEN KIT]
MOTOR BALL HOPPER
MHCH0PAR012
|
|
|
[HUNGRY CHICKEN KIT]
MOTOR CONVEYOR
60JB90G0832 / 55ZY24-25-01
|
[HUNGRY CHICKEN KIT]
MOTOR CONVEYOR
MHCH0PAR045
|
|
|
[HUNGRY CHICKEN KIT]
MOTOR_24V
55ZY24-25-01_SUB 75
|
[HUNGRY CHICKEN KIT]
MOTOR_24V
M2220HUN012
|
|
|
[HUNGRY CHICKEN KIT]
PUSH BUTTON 1P
.
|
[HUNGRY CHICKEN KIT]
PUSH BUTTON 1P
MHCH0PAR057
|
|
|
[HUNGRY CHICKEN KIT]
PUSH BUTTON 2P
.
|
[HUNGRY CHICKEN KIT]
PUSH BUTTON 2P
MHCH0PAR058
|
|
|
[HUNGRY CHICKEN KIT]
TICKET BOX
.
|
[HUNGRY CHICKEN KIT]
TICKET BOX
MHCH0PAR059
|
|
|
[HUNGRY CHICKEN KIT]
TOP MOLDING-L
.
|
[HUNGRY CHICKEN KIT]
TOP MOLDING-L
MHCH0PAR060
|
|
|
[HUNGRY CHICKEN KIT]
TOP MOLDING-R
.
|
[HUNGRY CHICKEN KIT]
TOP MOLDING-R
MHCH0PAR061
|
|
49 |
|

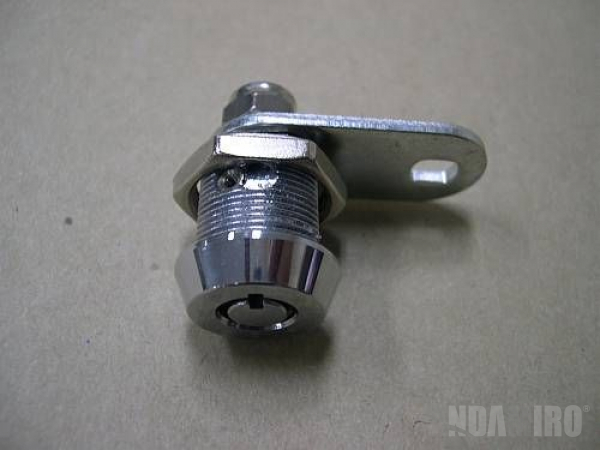

KEY ASS'Y
MZZZ0KEY069
|
|
50 |
|

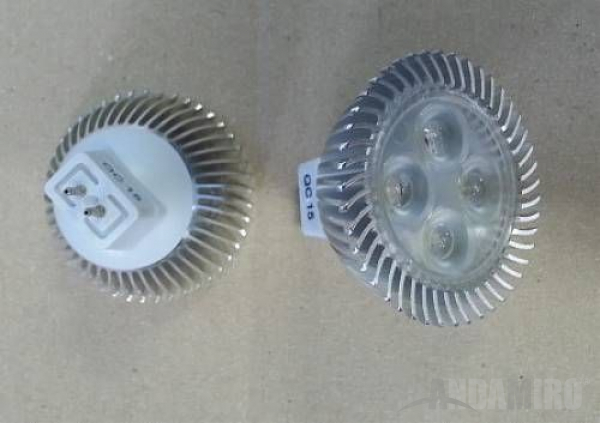

LAMP
MELE0LAM083
|
|
51 |
|
LED BAR 12V ASS'Y
AZZZ0PCB124
|
|
|
|
[LED BAR 12V ASS'Y]
MELE0LEP001
|
|
|
|
[LED BAR 12V ASS'Y]
MELE0LEP004
|
|
|
|
[LED BAR 12V ASS'Y]
MELE0LEP005
|
|
52 |
LED STICK BAR BRK
12MM 90도
|
LED STICK BAR BRK
MELE0000022
|
|
53 |

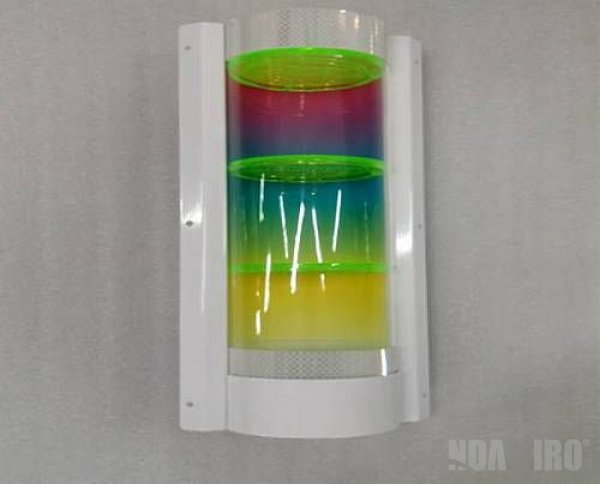

LOWER SIDE DECORATION ASS'Y
.
|
LOWER SIDE DECORATION ASS'Y
AHCH0ASS007
|
|
54 |

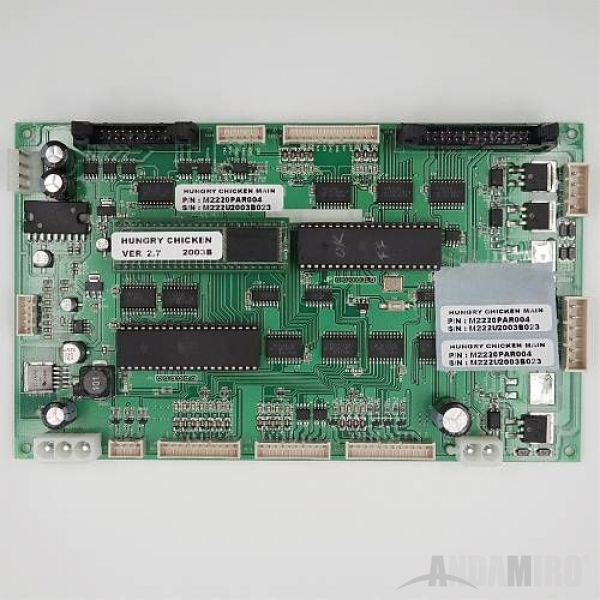

MAIN PCB ASS'Y
HUNGRY CHICKEN
|
MAIN PCB ASS'Y
M2220PAR004
|
|
55 |

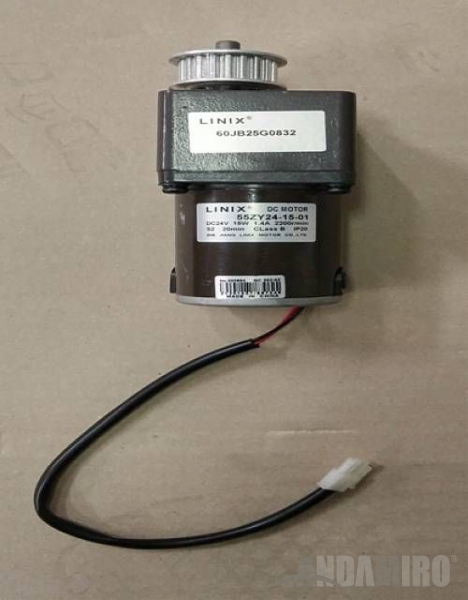

MOTOR BALL HOPPER
60JB25G0832 / 55ZY24-15-01
|
MOTOR BALL HOPPER
MHCH0PAR012
|
|
56 |

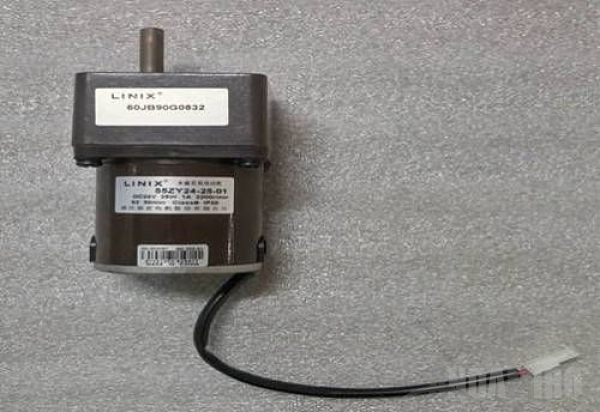

MOTOR CONVEYOR
60JB90G0832 / 55ZY24-25-01
|
MOTOR CONVEYOR
MHCH0PAR045
|
|
57 |

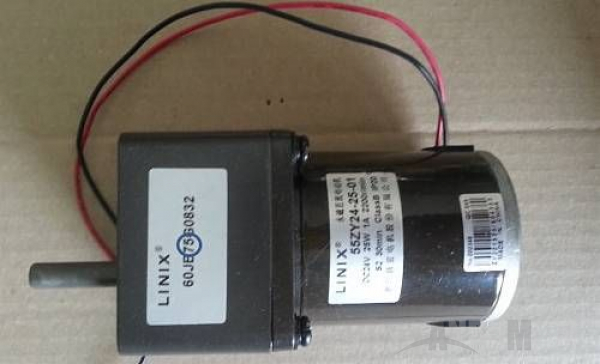

MOTOR_24V
55ZY24-25-01_SUB 75
|
MOTOR_24V
M2220HUN012
|
|
58 |
|
NOISE FILTER
MELE0NOI006
|
|
59 |
PHOTO INT-1 PCB ASS'Y
ANGLE TYPE
|
PHOTO INT-1 PCB ASS'Y
AZZZ0PCB103
|
|
60 |
PLUG CUSHION RUBBER
공진 [KD-96R-9] 6MM
|
PLUG CUSHION RUBBER
MCIR0RUB001
|
|
61 |
|
POWER SMPS
MELE0SMP085
|
|
62 |
|
POWER SMPS
MELE0SMP090
|
|
63 |
|

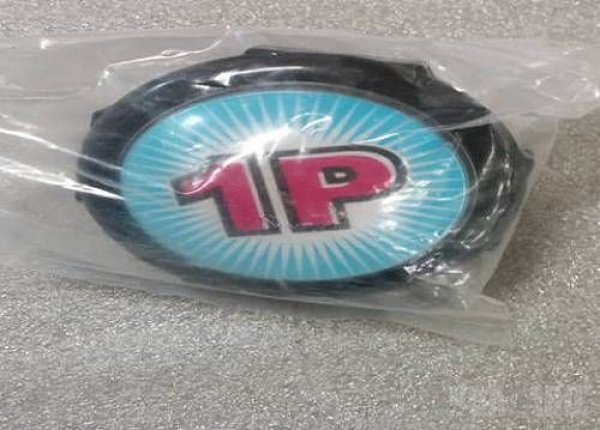

PUSH BUTTON 1P
MHCH0PAR057
|
|
64 |
|

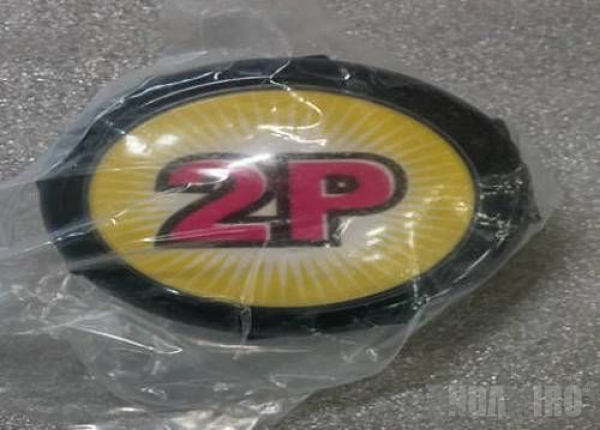

PUSH BUTTON 2P
MHCH0PAR058
|
|
65 |
PUSH BUTTON SWITCH
HS 412R
|
PUSH BUTTON SWITCH
MELE0PUS001
|
|
66 |
PUSH BUTTON SWITCH
DS-412R ROSH
|
PUSH BUTTON SWITCH
MELE0PUS006
|
|
67 |
|
ROCKER SWITCH
MELE0SWI004
|
|
68 |

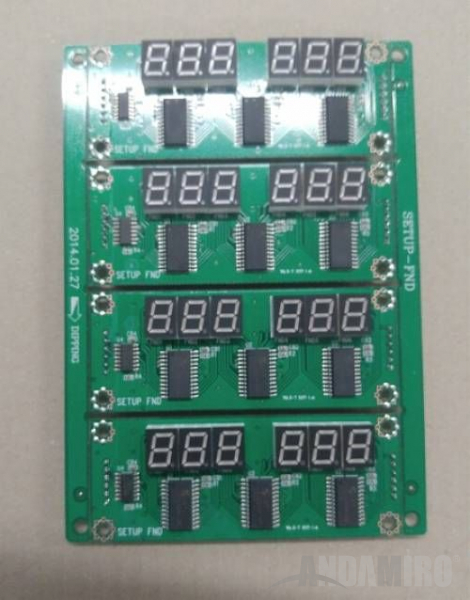

SETUP FND ASS'Y
HUNGRY CHICKEN CEC
|
SETUP FND ASS'Y
AHCH0PCB001
|
|
69 |
|
SMPS BKT
MZZZ0MEP048
|
|
70 |
|

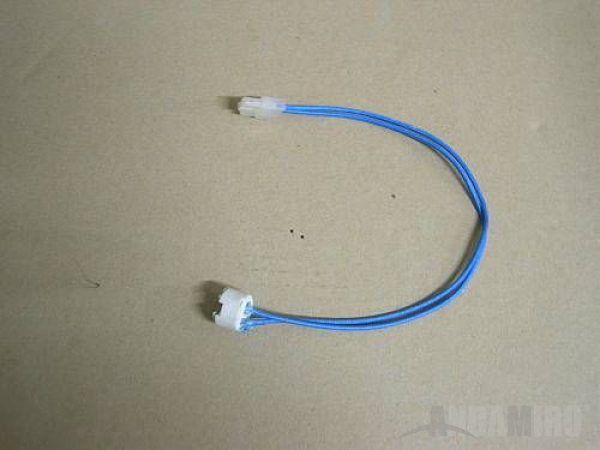

SOCKET
MELE0SOC009
|
|
71 |
SPEAKER
MID4.5"+TW1/2" 8Ω
|
SPEAKER
MZZZ0SPE021
|
|
72 |
|
SPRING WIRE
MZZZ0WIR012
|
|
73 |
TERMINAL BLOCK
250V 10P UL_CE
|
TERMINAL BLOCK
MELE0TEB003
|
|
74 |
|

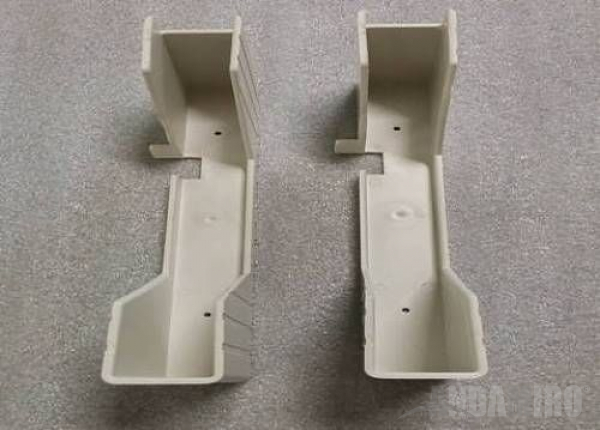

TICKET BOX
MHCH0PAR059
|
|
75 |
|
TICKET DISPENSER
MZZZ0TID008
|
|
76 |
|

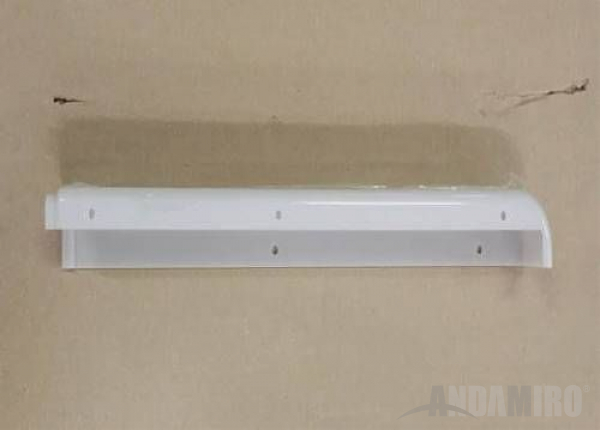

TOP MOLDING-L
MHCH0PAR060
|
|
77 |
|

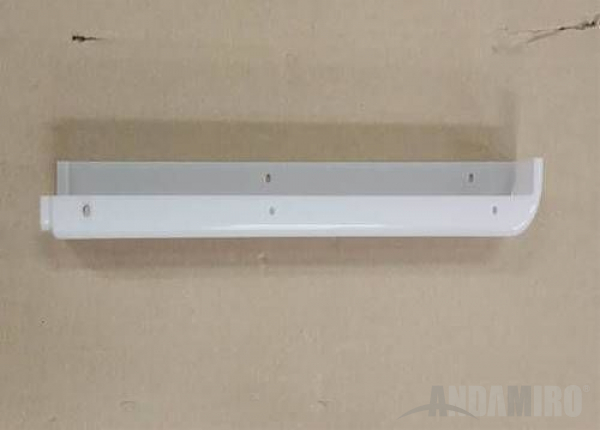

TOP MOLDING-R
MHCH0PAR061
|
|
78 |
|
VOLUME KNOB
MELE0VOL007
|
|
79 |
VOLUME PCB ASS'Y
1 VOLUME
|
VOLUME PCB ASS'Y
AHM20PCB016
|
