1 |
|
MZZZ0000569
|
|
2 |
|
AZZZ0HOP047
|
|
|
[]
HOPPER MACHINE
AM-CH2 SBP
|
[]
HOPPER MACHINE
AZZZ0HOP034
|
|
|
|
[]
HOPPER MACHINE 공용
AZZZ0PAR053
|
|
|
[]
COIN SHOOTER BKT PART
.
|
[]
COIN SHOOTER BKT PART
AHOP0ASS002
|
|
|
|
[]
BEARING
MZZZ0BEA082
|
|
|
|
[]
COIN SHOOTER ASS'Y
AHOP0ASS006
|
|
|
[]
COIN SHOOTER BEARING PIN
.
|
[]
COIN SHOOTER BEARING PIN
MHOP0PRO005
|
|
|
|
[]
COIN SHOOTER SHAFT
MHOP0PRO004
|
|
|
[]
COUNTER HOPPER BASE COVER
.
|
[]
COUNTER HOPPER BASE COVER
MHOP0ACR001
|
|
|
[]
CUSHION RUBBER
내경8*외경12
|
[]
CUSHION RUBBER
MHOP0ZZZ002
|
|
|
[]
CUSHION RUBBER SHAFT
.
|
[]
CUSHION RUBBER SHAFT
MHOP0PRO006
|
|
|
[]
HOPPER BASE SIDE BKT
.
|
[]
HOPPER BASE SIDE BKT
MHOP0MEP010
|
|
|
[]
HOPPER BASE SIDE BKT_MIR
.
|
[]
HOPPER BASE SIDE BKT_MIR
MHOP0MEP009
|
|
|
[]
HOPPER COIN BOWL BOX NEW
PC ABS , 흑색
|
[]
HOPPER COIN BOWL BOX NEW
MHOP0MOL001
|
|
|
|
[]
HOPPER DISK PART
AHOP0MEP002
|
|
|
[]
HOPPER DISK BASE BKT
.
|
[]
HOPPER DISK BASE BKT
MHOP0MEP001
|
|
|
|
[]
HOPPER DISK MOLD
MHOP0MOL002
|
|
|
|
[]
SPRING WASHER
MHOP0MEP002
|
|
|
|
[]
SPRING-3
MHOP0SPR001
|
|
|
|
[]
MAIN PLATE PART
AHOP0MEP003
|
|
|
|
[]
MAIN PLATE SHAFT
MHOP0PRO001
|
|
|
[]
MAIN PLATE TOP COVER
.
|
[]
MAIN PLATE TOP COVER
MHOP0MEP004
|
|
|
[]
MOTOR
KGV-0105-ND4266 X2 , SSF
|
[]
MOTOR
MHOP0MOT001
|
|
|
[]
PACKING RING
AMHP-003A PVC-투명
|
[]
PACKING RING
MZZZ0PRE022
|
|
|
|
[]
PHOTO SENSOR
MELE0PHO007
|
|
|
|
[]
SENSOR BKT
MHOP0MEP007
|
|
|
[]
SENSOR LINK BKT PART
.
|
[]
SENSOR LINK BKT PART
AHOP0ASS001
|
|
|
|
[]
BEARING
MZZZ0BEA012
|
|
|
[]
SENSOR LINK BKT ASS'Y
.
|
[]
SENSOR LINK BKT ASS'Y
AHOP0ASS005
|
|
|
[]
SENSOR LINK BKT BEARING PIN
.
|
[]
SENSOR LINK BKT BEARING PIN
MHOP0PRO002
|
|
|
[]
SENSOR LINK BKT SHAFT
.
|
[]
SENSOR LINK BKT SHAFT
MHOP0PRO003
|
|
|
[]
SHOOTER LINK BKT GUIDE
.
|
[]
SHOOTER LINK BKT GUIDE
MHOP0MEP008
|
|
|
|
[]
SPRING WASHER
MHOP0MEP002
|
|
|
|
[]
SPRING-1
MHOP0SPR002
|
|
|
[]
WAVE WASHER
내경Φ6 _ WW-6
|
[]
WAVE WASHER
MHOP0ZZZ001
|
|
|
|
[]
OPTION
AZZZ0HOP037
|
|
|
[]
COUNTER HOPPER LABEL(AM-CH2)
AM-CH2,SBP용,빨강색
|
[]
COUNTER HOPPER LABEL(AM-CH2)
MZZZ0STI124
|
|
|
[]
HOPPER BASE BKT
SBP용에 한함.
|
[]
HOPPER BASE BKT
MHOP0MEP012
|
|
|
[]
HOPPER GUIDE BKT (SBP)
.
|
[]
HOPPER GUIDE BKT (SBP)
MHOP0MEP015
|
|
|
|
[]
OUTLET GUIDE BKT-A
MHOP0MEP013
|
|
|
|
[]
FERRITE CORE
MELE0FER001
|
|
3 |
|
AGDM0ASS013
|
|
4 |
|
AGDM0ASS014
|
|
5 |
|
AZZZ0HOP043
|
|
|
|
[]
MZZZ0HOP073
|
|
|
|
[]
MGDM0MIC001
|
|
|
|
[]
MGDM0MIC001
|
|
6 |
|
AC INPUT
MELE0SWI015
|
|
7 |
AC POWER CORD UL
125V_10A_SVT 3/18AWG
|
AC POWER CORD UL
MELE0ACP001
|
|
8 |
ADAPTOR
12V 3.5A SW42003500W LARGE
|
ADAPTOR
MELE0ADA001
|
|
9 |
|
ARM-END ASS'Y
AGDM0ASS007
|
|
10 |
|

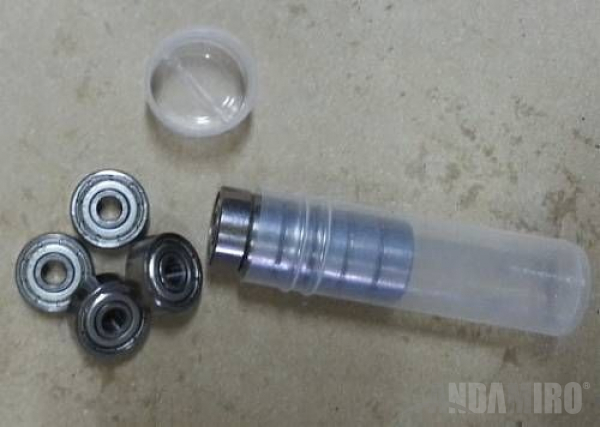

BEARING
MZZZ0BEA037
|
|
11 |
|
BEARING
MZZZ0BEA076
|
|
12 |
|

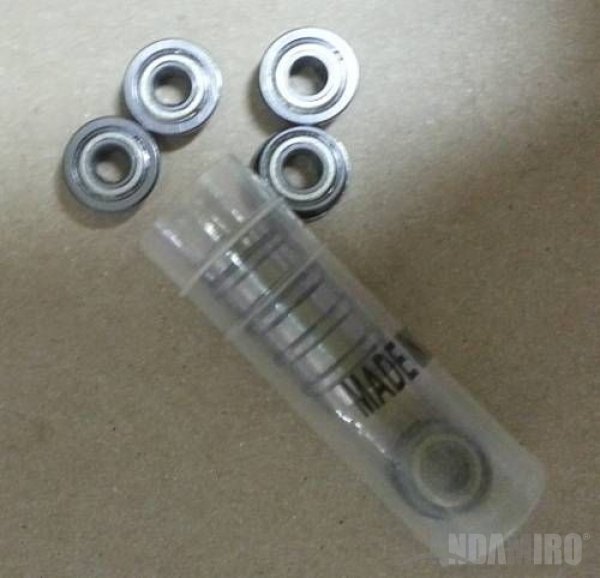

BEARING
MZZZ0BEA099
|
|
13 |
|

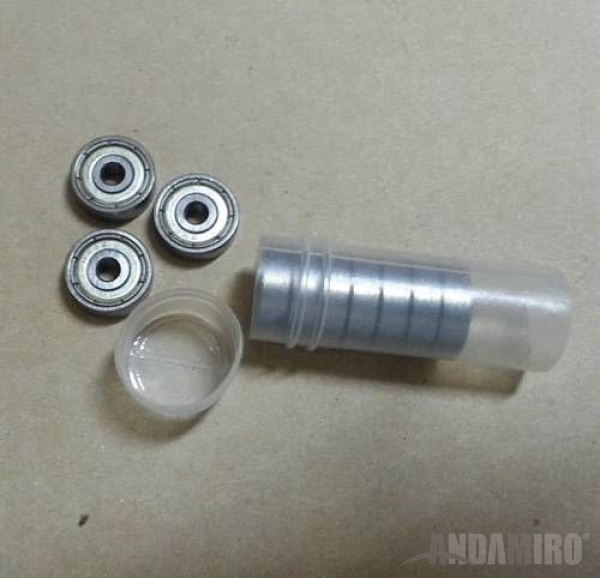

BEARING
MZZZ0BEA100
|
|
14 |
|

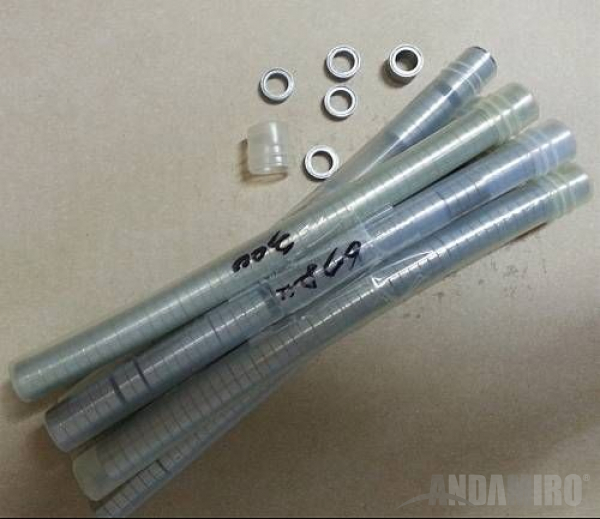

BEARING
MZZZ0BEA101
|
|

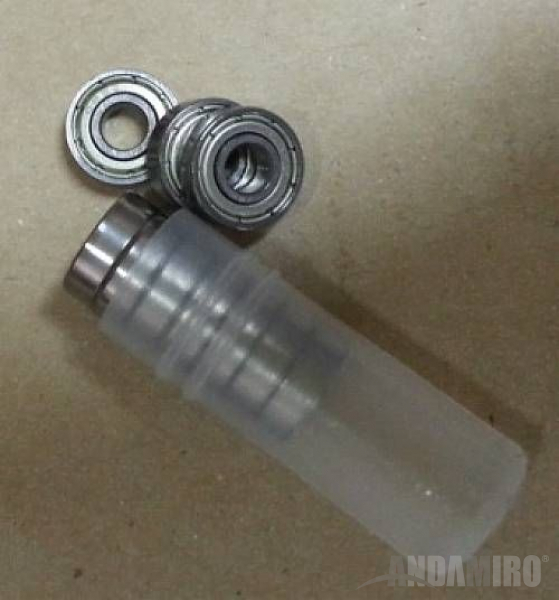

15 |
|
BEARING
MZZZ0BEA102
|
|
16 |

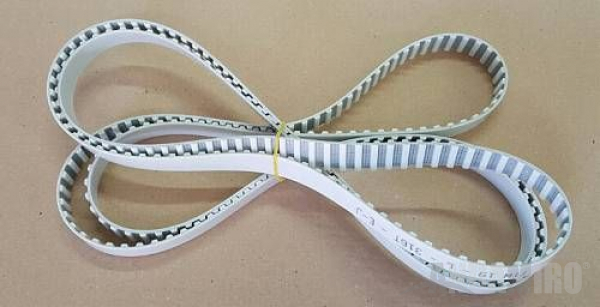

BELT
L075-316칸_URETHANE3009.9MM
|
BELT
MZZZ0BEL028
|
|
17 |
BUTTON SWITCH
TICKET AM1PB-26SH R12D
|
BUTTON SWITCH
MMUM0BUT002
|
|
18 |

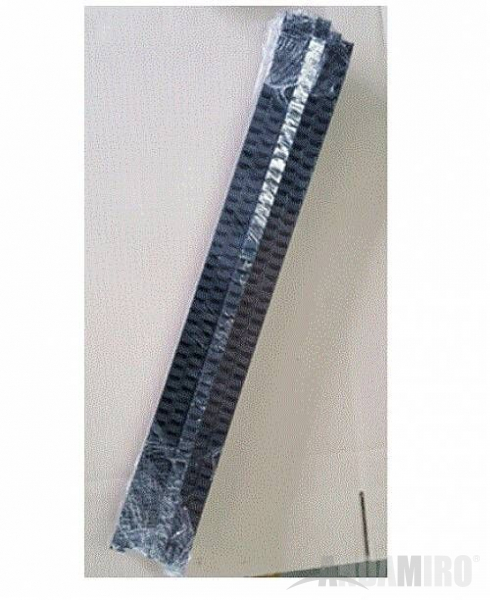

CABLE CHAIN
KJP015-1B-43LINK
|
CABLE CHAIN
MZZZ0CBC009
|
|
19 |
COIN BOX SMALL
200*198*107 BLACK
|
COIN BOX SMALL
MDRE0PLA007
|
|
20 |
COIN SELECTOR
CEC HS-03CS+SWITCH
|
COIN SELECTOR
MZZZ0COS028
|
|
21 |
COUNTER
OA127CL W/2P CONNECTOR_20CM WIRE
|
COUNTER
MZZZ0COU002
|
|
22 |

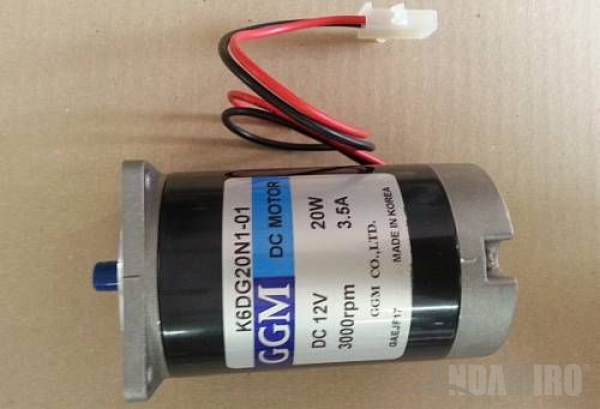

DC MOTOR
KDGG20N1_1:100_12V3000RPM
|
DC MOTOR
MZZZ0MOT091
|
|
23 |

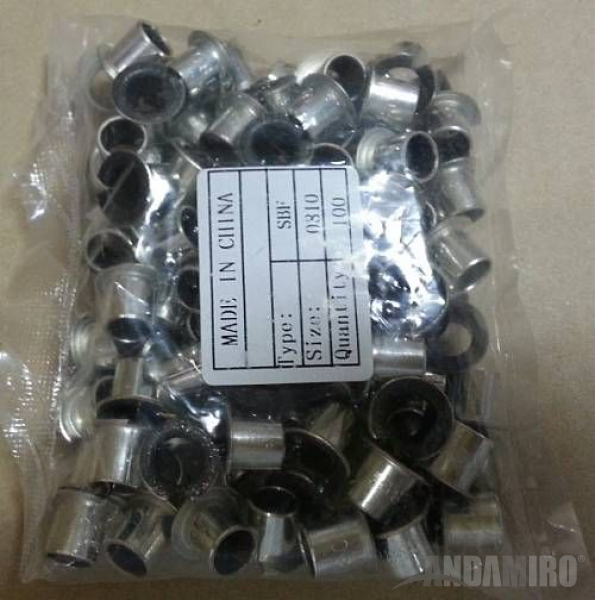

DU BUSHING FLANGE
JZF8-10 8MM_L10MM
|
DU BUSHING FLANGE
MZZZ0BEA097
|
|
24 |

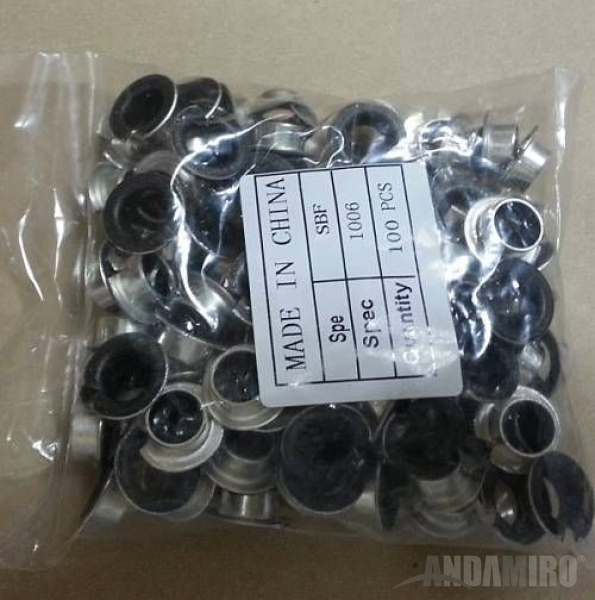

DU BUSHING FLANGE
JZF10-6_10MM_L6MM
|
DU BUSHING FLANGE
MZZZ0BEA098
|
|
25 |
|
FERRITE CORE
MELE0FER001
|
|
26 |
FND PCB ASS'Y
2029-2(STRAIGHT)
|
FND PCB ASS'Y
AFND0PCB001
|
|
27 |
FND PCB ASS'Y
4870-4(STRAIGHT)
|
FND PCB ASS'Y
AFND0PCB009
|
|
28 |

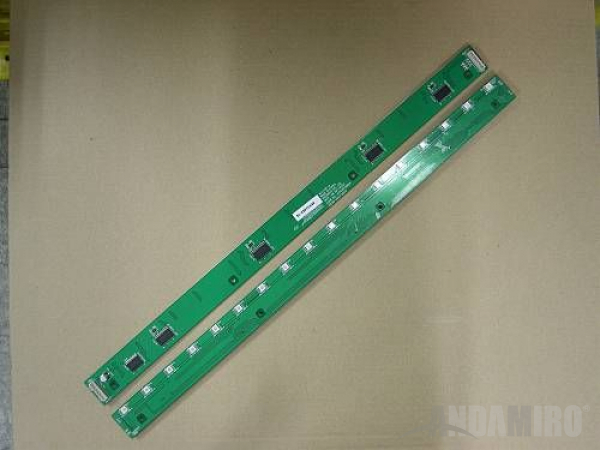

FRONT LIGHT DECO PCB ASS'Y
TTC BGR
|
FRONT LIGHT DECO PCB ASS'Y
ATTC0PCB004
|
|
|
[FRONT LIGHT DECO PCB ASS'Y]
FRONT LIGHT DECO PCB
AM20110223
|
[FRONT LIGHT DECO PCB ASS'Y]
FRONT LIGHT DECO PCB
PPCB0DOU281
|
|
|
[FRONT LIGHT DECO PCB ASS'Y]
LED 5450 3CHIP
IWS-L5056-BGR-K3
|
[FRONT LIGHT DECO PCB ASS'Y]
LED 5450 3CHIP
PDIS0LED048
|
|
29 |
FUSE
0218010.MXP 250V,10A,4PA
|
FUSE
MELE0FUS018
|
|
30 |
FUSE LABEL(10A-250V) ETL
75*50
|
FUSE LABEL(10A-250V) ETL
MZZZ0STI090
|
|
31 |
|
G RAIL
MELD0PRO002
|
|
32 |
|
GEAR BOX
MZZZ0MOS011
|
|
33 |
|
HAND BOLT
BHAB0060002
|
|
34 |
|

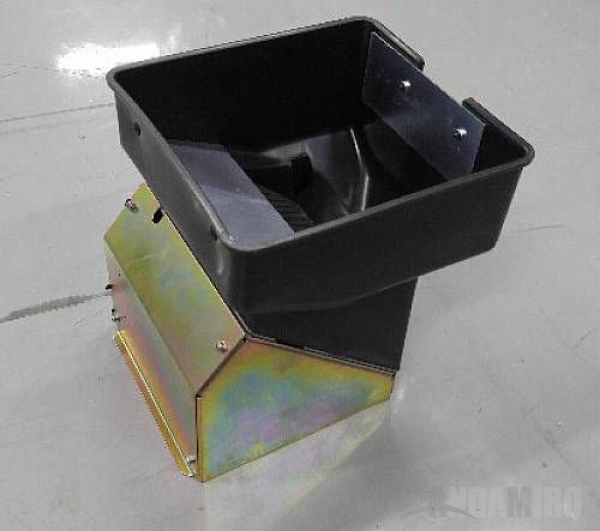

HOPPER MACHINE
AZZZ0HOP020
|
|
|
[HOPPER MACHINE]
FERRITE CORE
RU1335
|
[HOPPER MACHINE]
FERRITE CORE
MELE0FER001
|
|
35 |
|

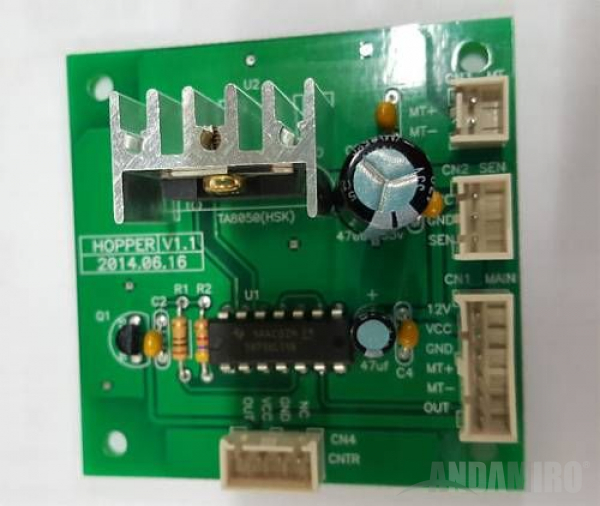

JOY HOPPER PCB ASS'Y
AGDM0PCB002
|
|
36 |

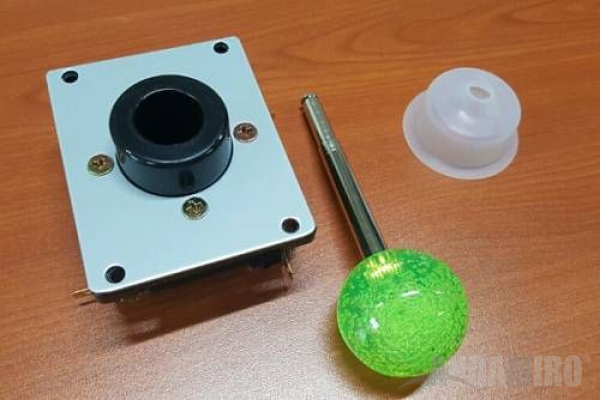

JOYSTICK ASS'Y
CWL-308-JMS GREEN WITH COVER(실리콘)
|
JOYSTICK ASS'Y
AZZZ0JOY014
|
|
|
[JOYSTICK ASS'Y]

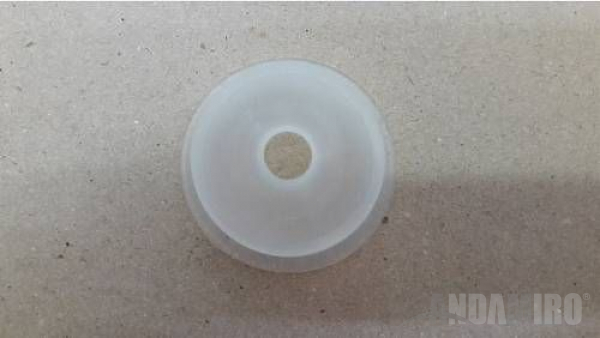

JOYSTICK HANDLE COVER
SILICON 방수
|
[JOYSTICK ASS'Y]
JOYSTICK HANDLE COVER
MZZZ0JOY012
|
|
37 |
|
KEY ASS'Y
MZZZ0KEY069
|
|
38 |
|
LAMP
MELE0LAM083
|
|
39 |
|
LED BAR 12V ASS'Y
AZZZ0PCB124
|
|
|
|
[LED BAR 12V ASS'Y]
MELE0LEP001
|
|
|
|
[LED BAR 12V ASS'Y]
MELE0LEP004
|
|
|
|
[LED BAR 12V ASS'Y]
MELE0LEP005
|
|
40 |
LED STICK BAR BRK
12MM 90도
|
LED STICK BAR BRK
MELE0000022
|
|
41 |
|

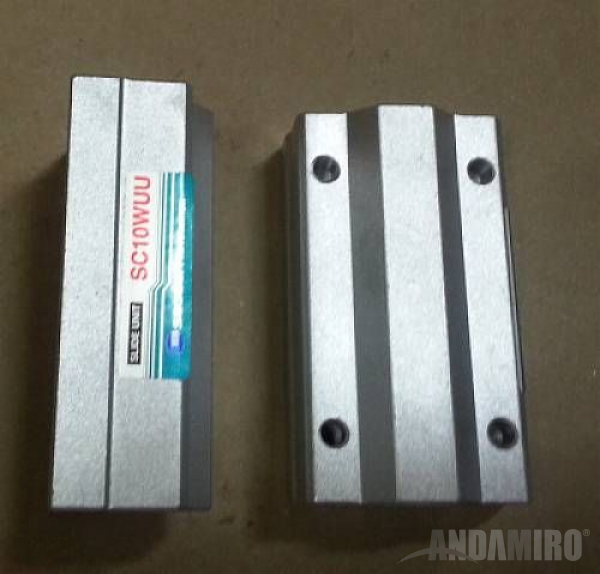

LINEAR
MZZZ0LIN003
|
|
42 |
|

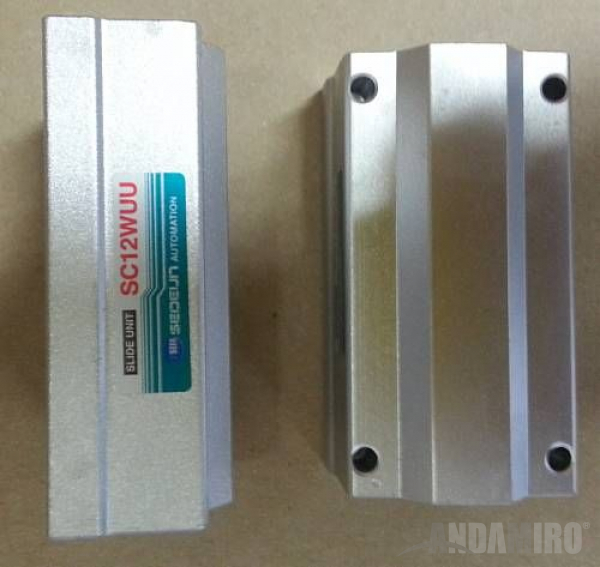

LINEAR
MZZZ0LIN004
|
|
43 |
|

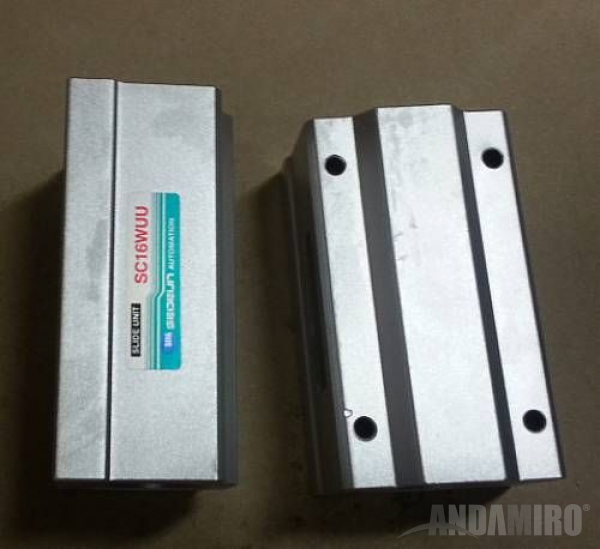

LINEAR
MZZZ0LIN005
|
|
44 |

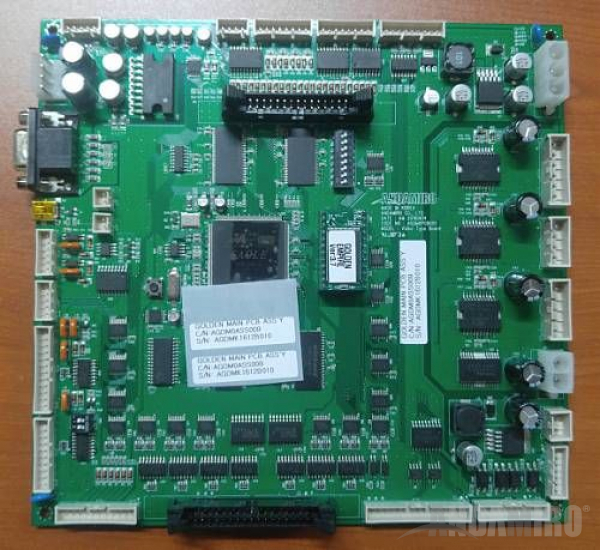

MAIN PCB ASS'Y
WITH MEMORY
|
MAIN PCB ASS'Y
AGDM0ASS009
|
|
|
[MAIN PCB ASS'Y]
MEMORY PCB ASS'Y
SAFARI_SPONGE BOB
|
[MAIN PCB ASS'Y]
MEMORY PCB ASS'Y
ASAW0PCB002
|
|
45 |
|

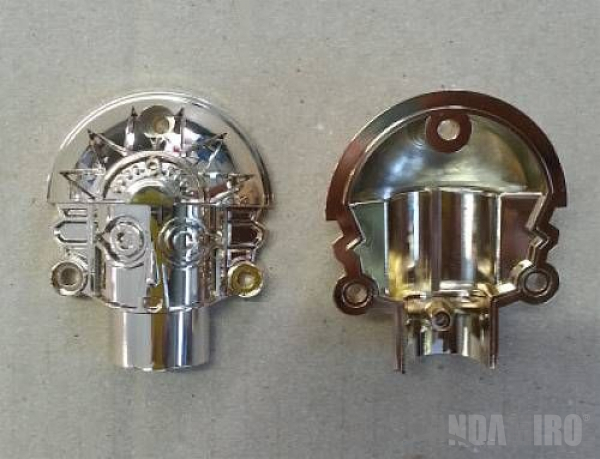

MAYA STATUS(2개 한조)
MGDM0PLA002
|
|
46 |

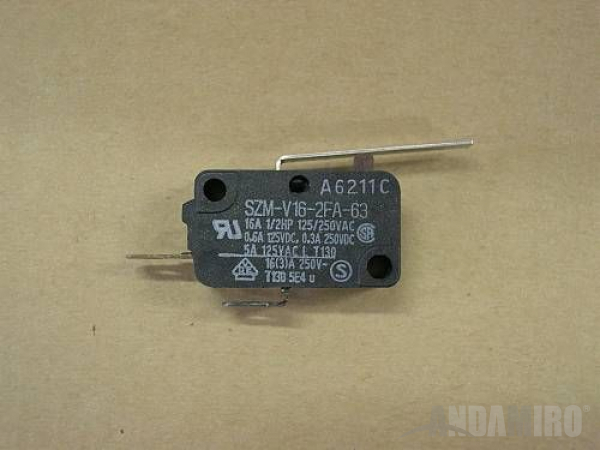

MICRO SWITCH
SZM-V16-2FA-63
|
MICRO SWITCH
MELE0MIC008
|
|
47 |
MICRO SWITCH
GSMV1651A2(스텐롤러)
|
MICRO SWITCH
MELE0MIC021
|
|
48 |

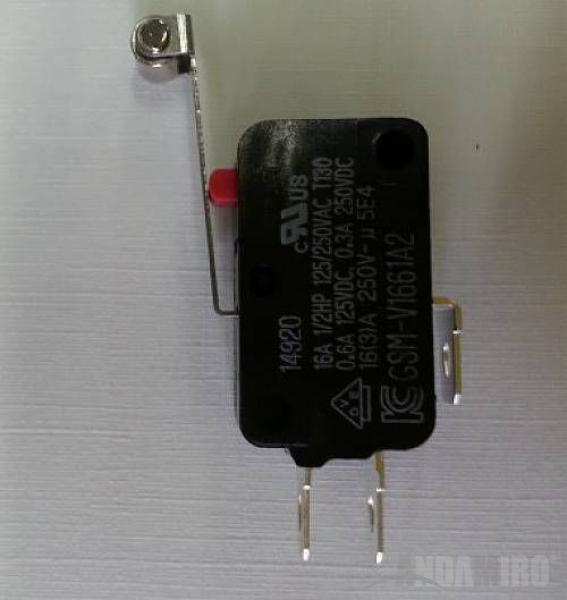

MICRO SWITCH
GSMV1661A2(장스텐롤러)
|
MICRO SWITCH
MELE0MIC025
|
|
49 |
MICRO SWITCH(BUTTON용)
SZM-V16-FA-63(200G)
|
MICRO SWITCH(BUTTON용)
MELE0MIC013
|
|
50 |
|
MICRO SWITCH-S
MELE0MIC003
|
|
51 |
|

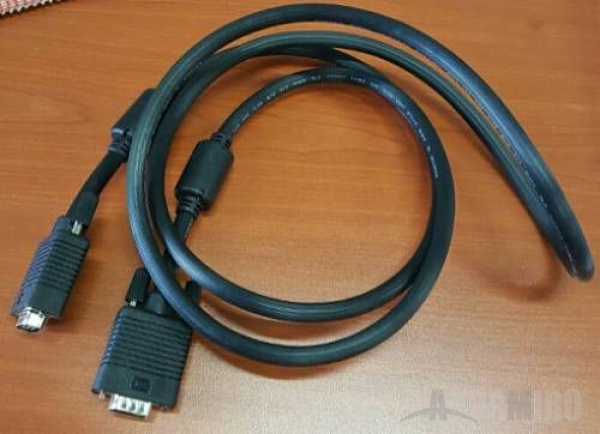

MONITOR CABLE
MZZZ0HAN039
|
|
52 |

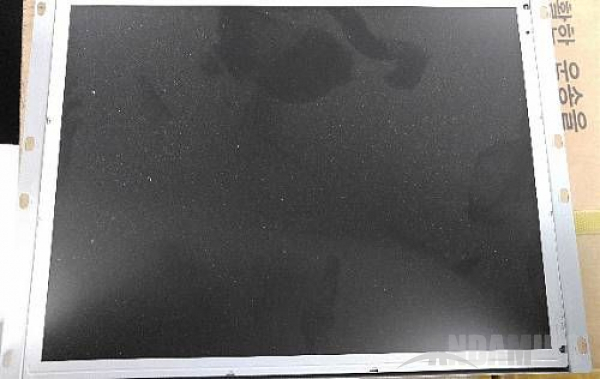

MONITOR LCD 15"
LA15NTVXI
|
MONITOR LCD 15"
MZZZ0MON028
|
|
53 |

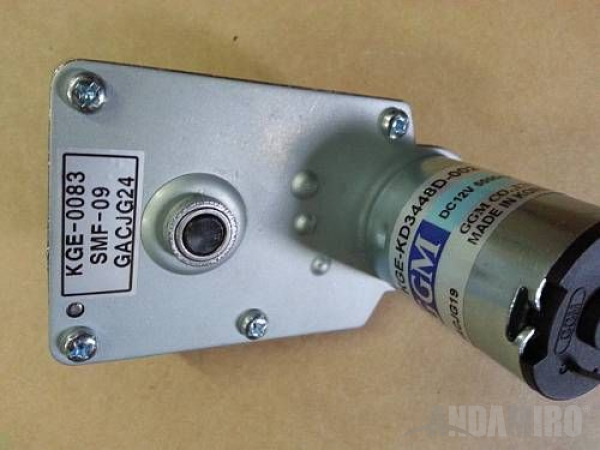

MOTOR
KGE-083-3448D 12V 5000R
|
MOTOR
MMAL0MOT004
|
|
54 |

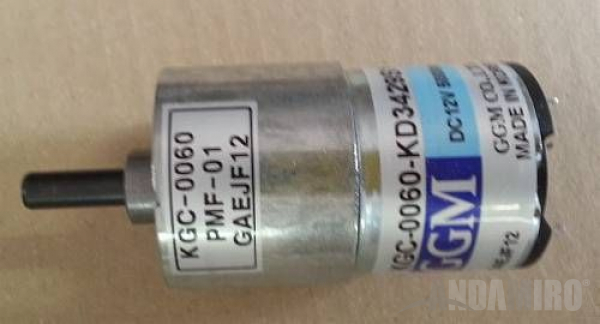

MOTOR
KGC-060-3429L_12V5000RPM_1:60
|
MOTOR
MZZZ0MOT090
|
|
55 |
MOTOR
KGE-308-3448D_12V5000RPM_1:308가공기어
|
MOTOR
MZZZ0MOT092
|
|
56 |
|
NOISE FILTER
MELE0NOI006
|
|
57 |

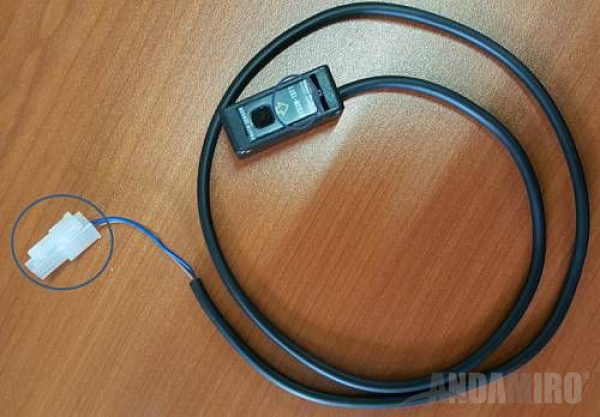

PHOTO SENSOR
BYD3M-TDT1_수광
|
PHOTO SENSOR
MELE0PHO028
|
|
58 |

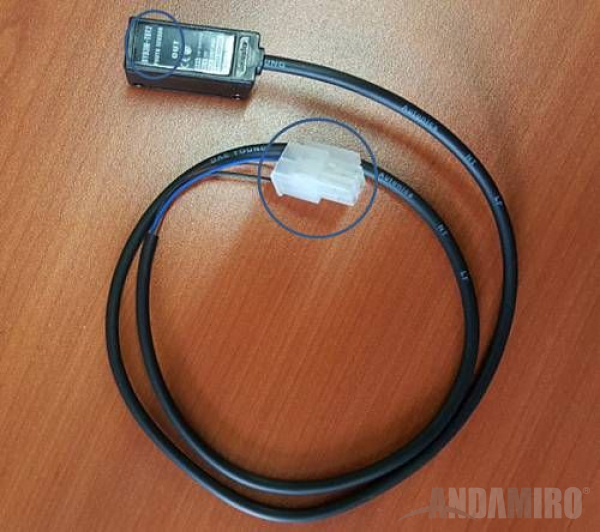

PHOTO SENSOR
BYD3M-TDT2_발광
|
PHOTO SENSOR
MELE0PHO029
|
|
59 |
PLUG CUSHION RUBBER
공진 [KD-96R-9] 6MM
|
PLUG CUSHION RUBBER
MCIR0RUB001
|
|
60 |
|
POWER SMPS
MELE0SMP085
|
|
61 |
|

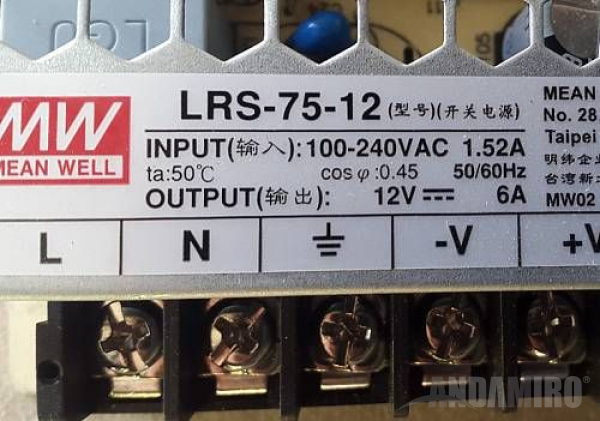

POWER SMPS
MELE0SMP093
|
|
62 |
|
POWER SMPS
MELE0SMP094
|
|
63 |
|
PRO ASS'Y
AGDM0ASS002
|
|
|
|
[PRO ASS'Y]

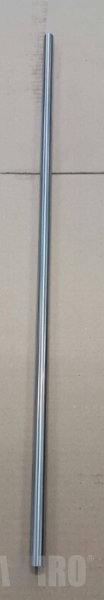

12-SHAFT
MGDM0PRO001
|
|
|
|
[PRO ASS'Y]
16-SHAFT
MGDM0PRO002
|
|
|
|
[PRO ASS'Y]

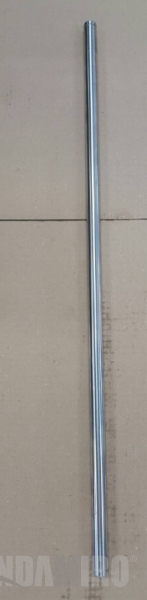

16-SHAFT2
MGDM0PRO003
|
|
|
[PRO ASS'Y]

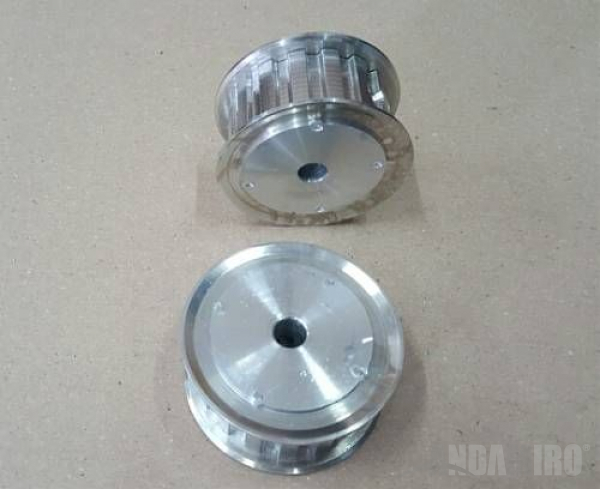

ATP16L075-A-N10_A
.
|
[PRO ASS'Y]
ATP16L075-A-N10_A
MGDM0PRO004
|
|
|
[PRO ASS'Y]

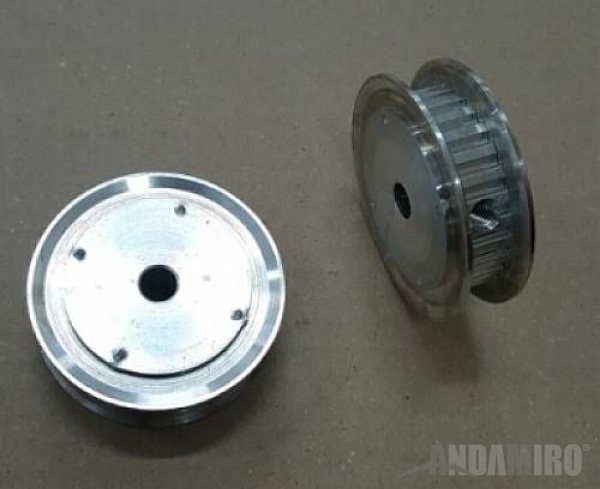

ATP28XL037-A-P8
.
|
[PRO ASS'Y]
ATP28XL037-A-P8
MGDM0PRO005
|
|
|
[PRO ASS'Y]

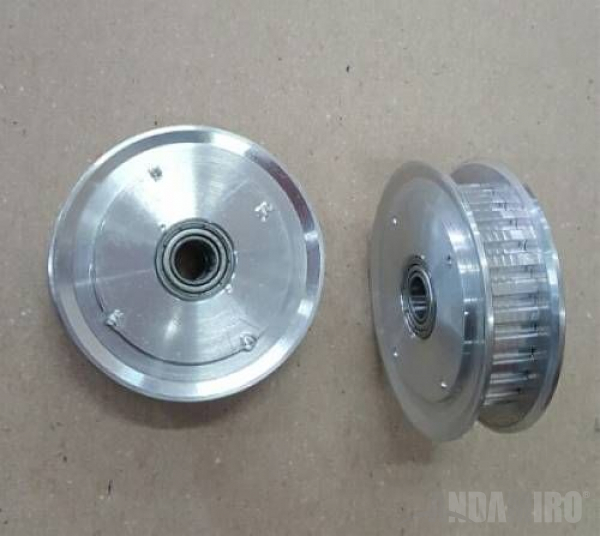

ATP28XL037-A-P8-B
.
|
[PRO ASS'Y]
ATP28XL037-A-P8-B
MGDM0PRO006
|
|
|
[PRO ASS'Y]

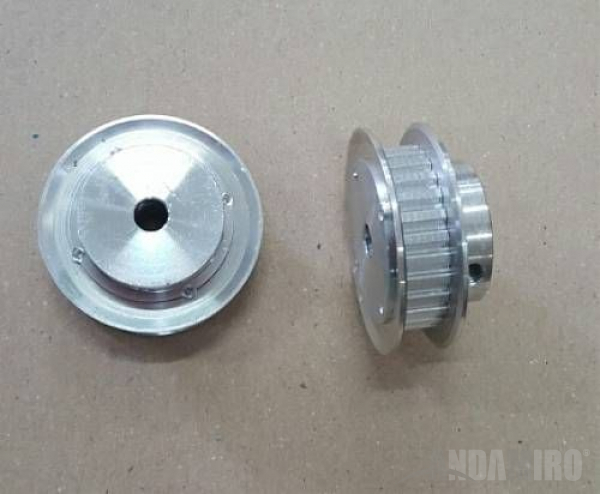

ATP28XL037-B-N10
.
|
[PRO ASS'Y]
ATP28XL037-B-N10
MGDM0PRO007
|
|
|
[PRO ASS'Y]

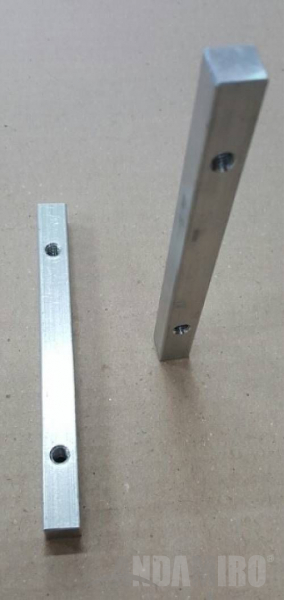

BUCKET-SUPPORT
.
|
[PRO ASS'Y]
BUCKET-SUPPORT
MGDM0PRO008
|
|
|
[PRO ASS'Y]

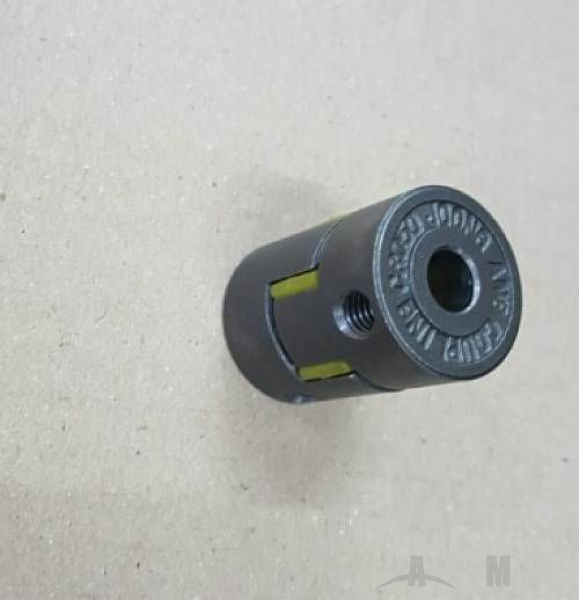

COUPLING
CR050
|
[PRO ASS'Y]
COUPLING
MGDM0PRO009
|
|
|
[PRO ASS'Y]

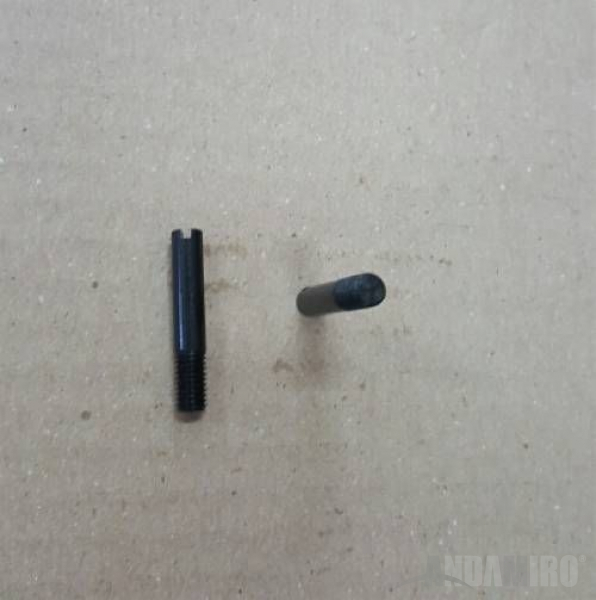

G-BEARING-PIN
.
|
[PRO ASS'Y]
G-BEARING-PIN
MGDM0PRO010
|
|
|
[PRO ASS'Y]

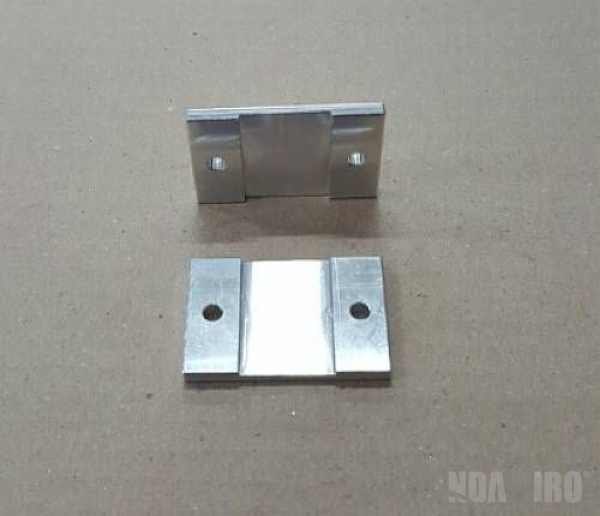

G-FIX-PLATE
.
|
[PRO ASS'Y]
G-FIX-PLATE
MGDM0PRO011
|
|
|
[PRO ASS'Y]

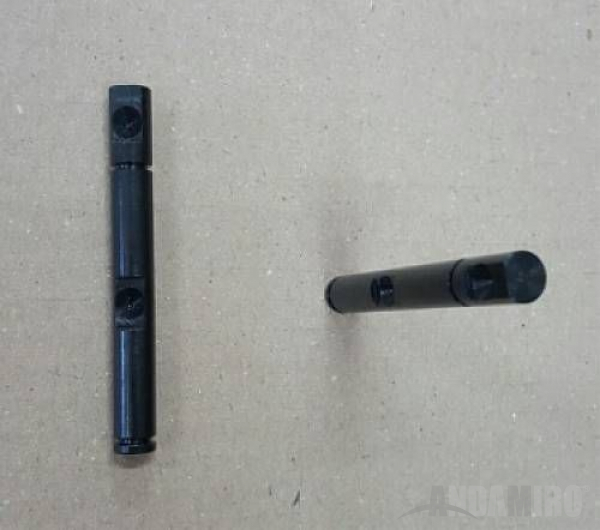

G-PULLY-SHAFT-D
.
|
[PRO ASS'Y]
G-PULLY-SHAFT-D
MGDM0PRO013
|
|
|
[PRO ASS'Y]

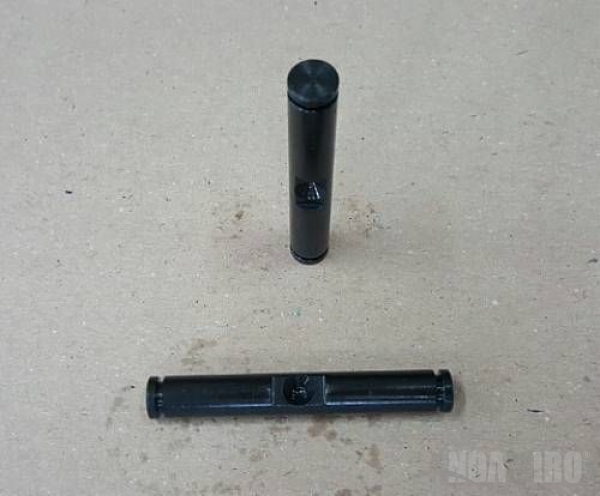

G-PULLY-SHAFT-U
.
|
[PRO ASS'Y]
G-PULLY-SHAFT-U
MGDM0PRO014
|
|
|
|
[PRO ASS'Y]

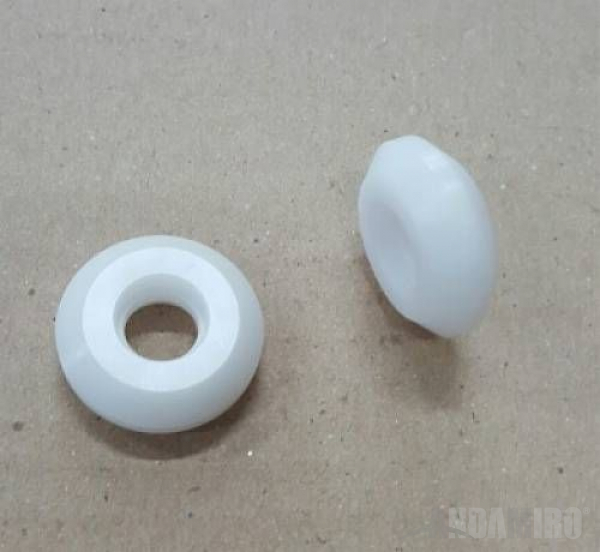

G-ROLLER
MGDM0PRO015
|
|
|
[PRO ASS'Y]

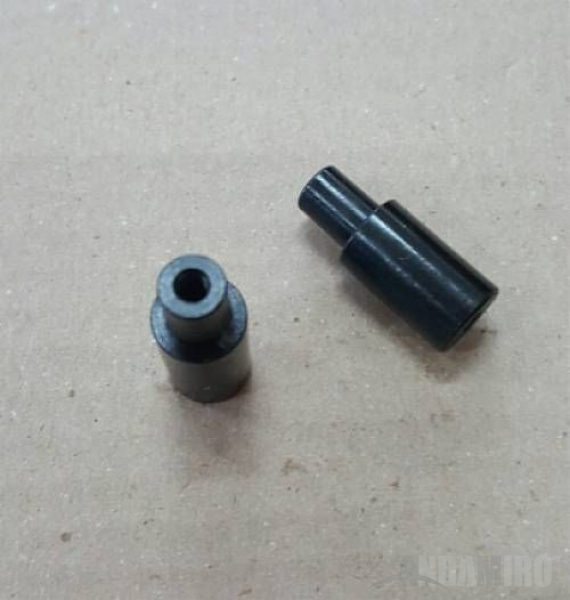

G-ROLLER-SHAFT
.
|
[PRO ASS'Y]
G-ROLLER-SHAFT
MGDM0PRO016
|
|
|
[PRO ASS'Y]

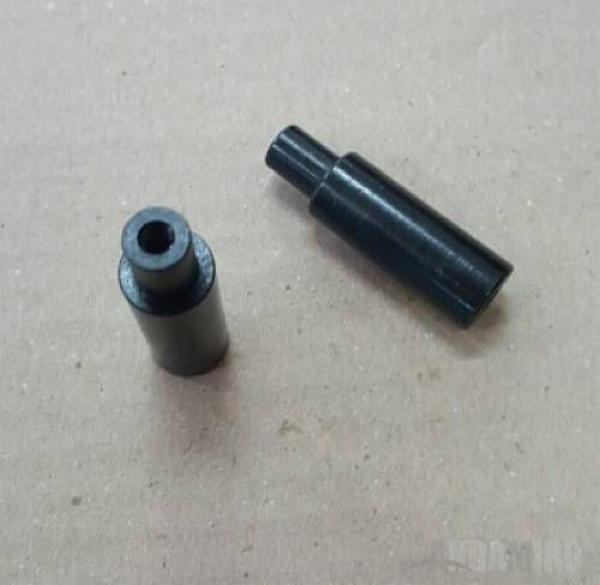

G-ROLLER-SHAFT-U
.
|
[PRO ASS'Y]
G-ROLLER-SHAFT-U
MGDM0PRO017
|
|
|
|
[PRO ASS'Y]

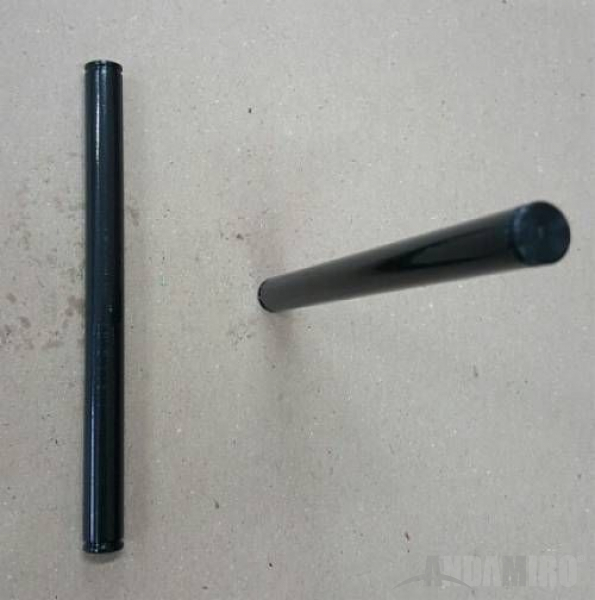

G-SHAFT
MGDM0PRO018
|
|
|
[PRO ASS'Y]

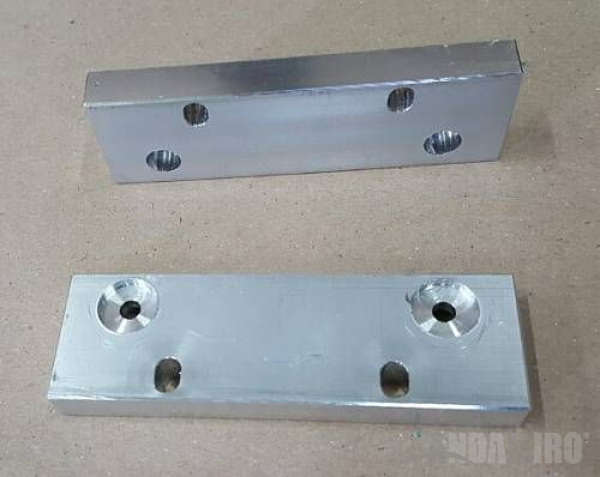

G-SHAFT-SUPPORT
.
|
[PRO ASS'Y]
G-SHAFT-SUPPORT
MGDM0PRO019
|
|
|
[PRO ASS'Y]

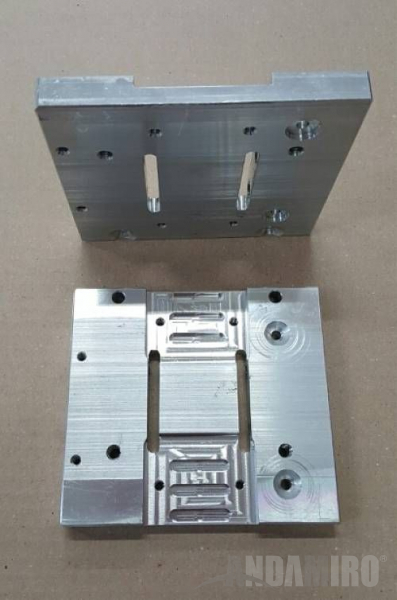

GONDORA-BASE
.
|
[PRO ASS'Y]
GONDORA-BASE
MGDM0PRO012
|
|
|
[PRO ASS'Y]

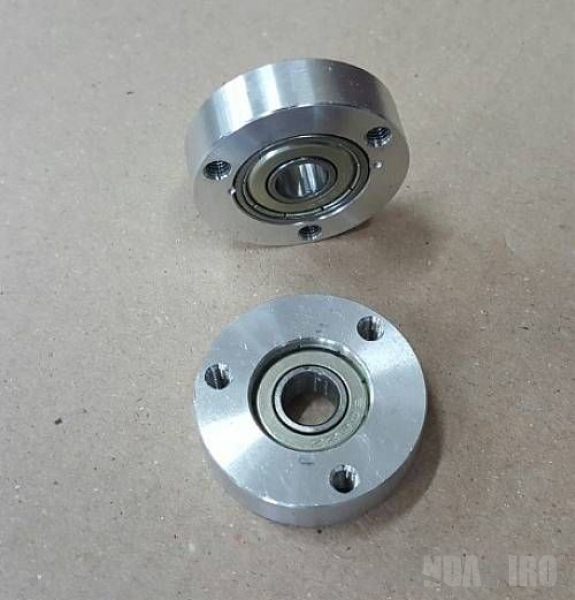

HOUSING_BGRA608ZZ
.
|
[PRO ASS'Y]
HOUSING_BGRA608ZZ
MGDM0PRO020
|
|
|
[PRO ASS'Y]

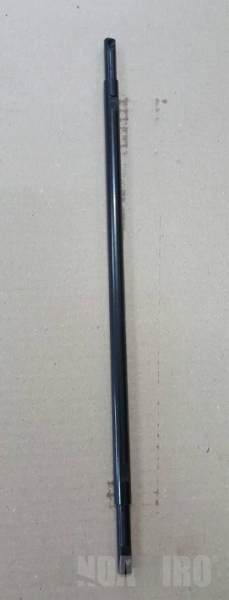

MEDAL-BOX-SHAFT
.
|
[PRO ASS'Y]
MEDAL-BOX-SHAFT
MGDM0PRO021
|
|
|
[PRO ASS'Y]

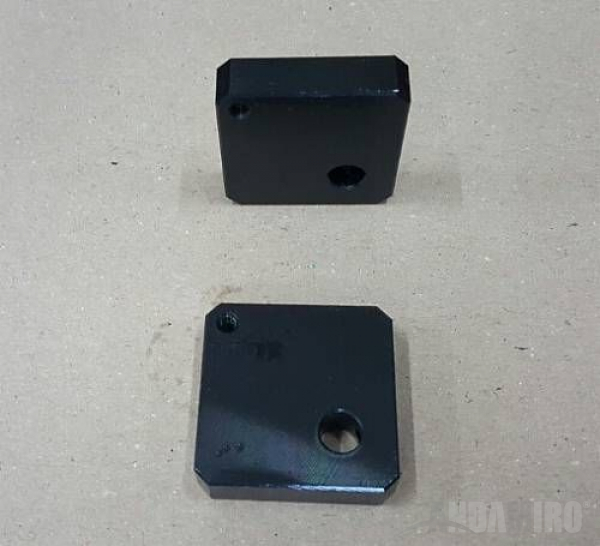

MEDAL-BOX-STOPPER2
.
|
[PRO ASS'Y]
MEDAL-BOX-STOPPER2
MGDM0PRO022
|
|
|
[PRO ASS'Y]

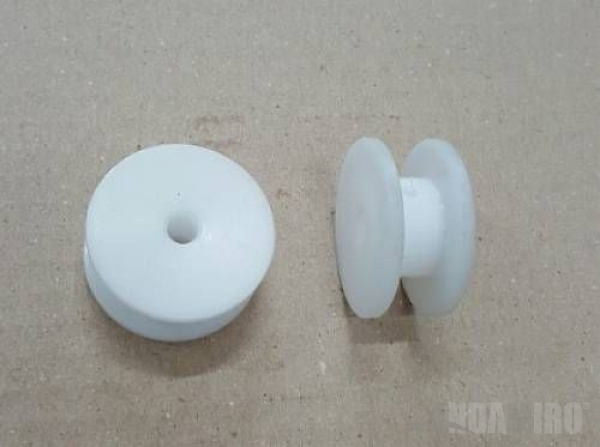

MOTOR-WHEEL
.
|
[PRO ASS'Y]
MOTOR-WHEEL
MGDM0PRO023
|
|
|
[PRO ASS'Y]

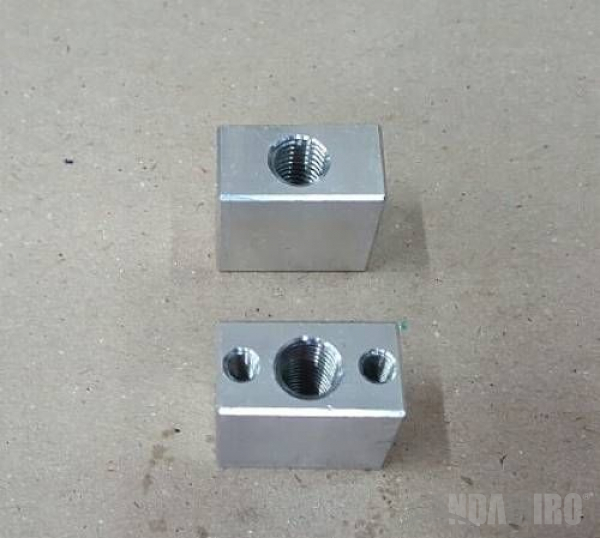

PLUNGERS-BRKT
.
|
[PRO ASS'Y]
PLUNGERS-BRKT
MGDM0PRO024
|
|
|
|
[PRO ASS'Y]
POLE-PROP2
MGDM0PRO026
|
|
|
|
[PRO ASS'Y]

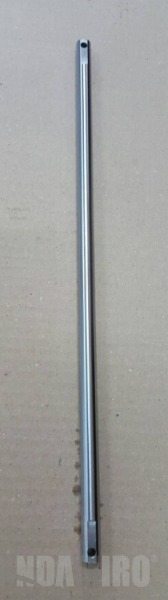

SHAFT-T
MGDM0PRO027
|
|
|
[PRO ASS'Y]

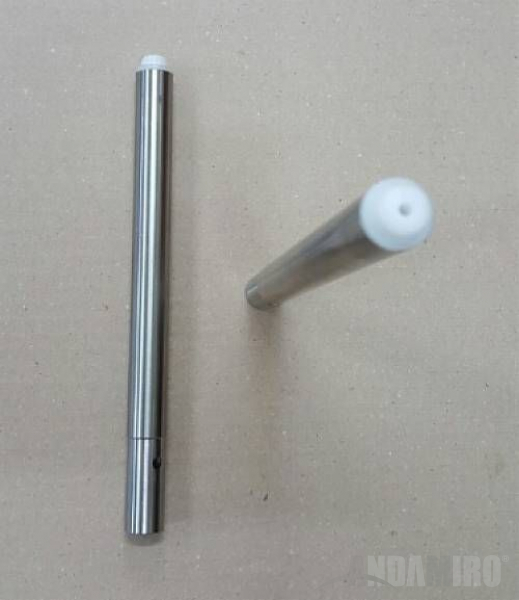

SPLS POLE ASS'Y
.
|
[PRO ASS'Y]
SPLS POLE ASS'Y
MGDM0PRO028
|
|
|
[PRO ASS'Y]

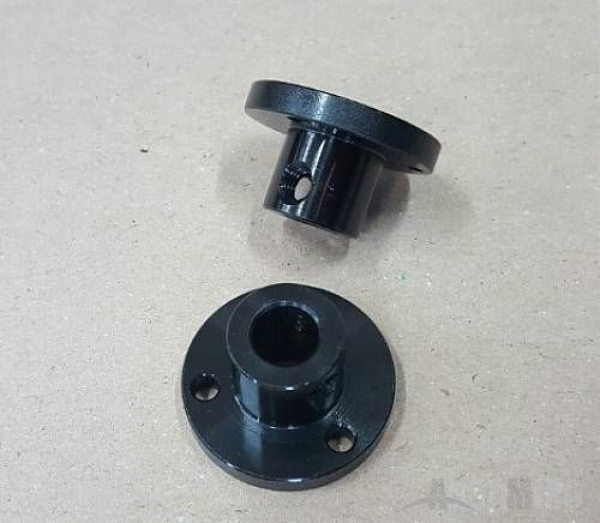

STHIRB10M_SS
.
|
[PRO ASS'Y]
STHIRB10M_SS
MGDM0PRO029
|
|
|
[PRO ASS'Y]

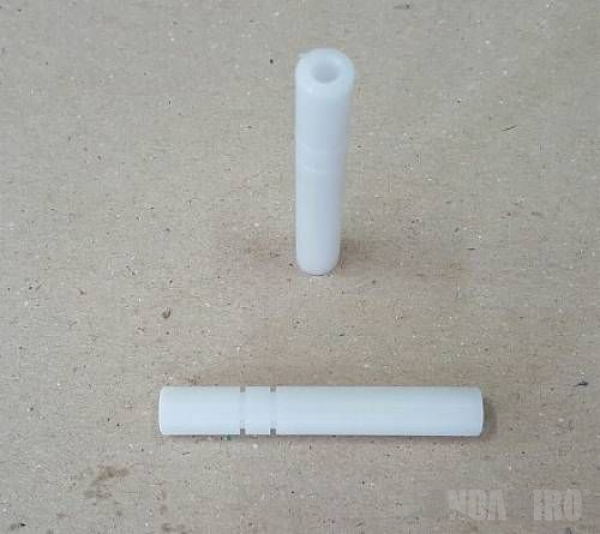

STOPPER-SHAFT
.
|
[PRO ASS'Y]
STOPPER-SHAFT
MGDM0PRO030
|
|
|
[PRO ASS'Y]

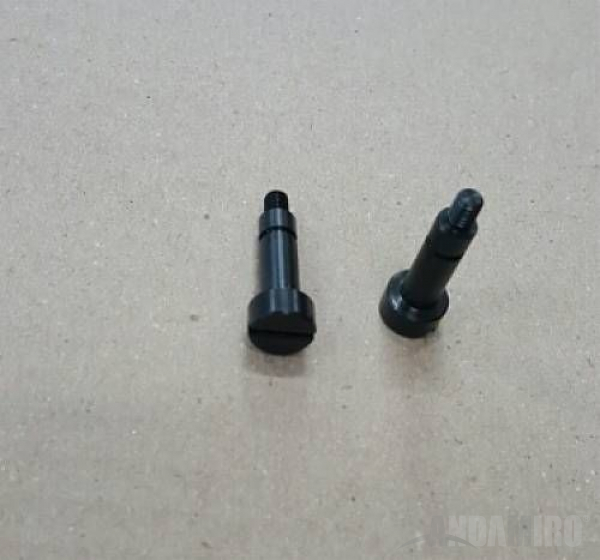

WHEEL-SCREW
.
|
[PRO ASS'Y]
WHEEL-SCREW
MGDM0PRO031
|
|
|
|
[PRO ASS'Y]

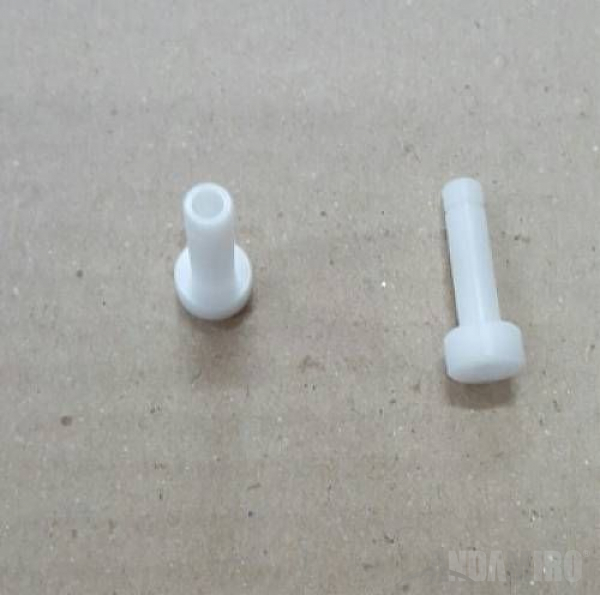

WIRE-BUSH
MGDM0PRO032
|
|
|
|
[PRO ASS'Y]

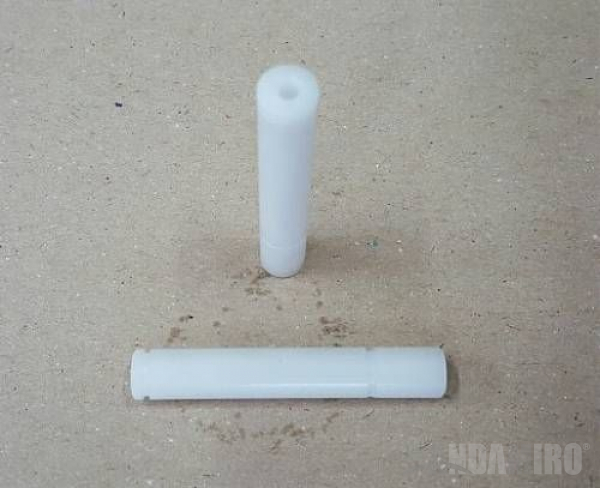

WIRE-SHAFT
MGDM0PRO033
|
|
|
|
[PRO ASS'Y]

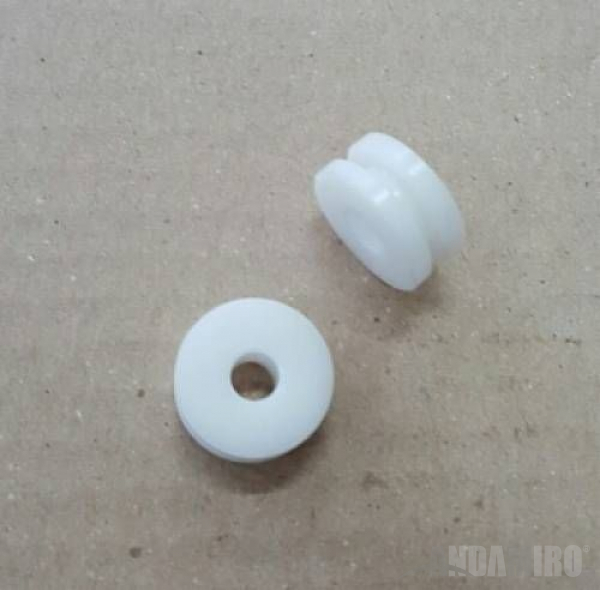

WIRE-WHEEL
MGDM0PRO034
|
|
|
[PRO ASS'Y]

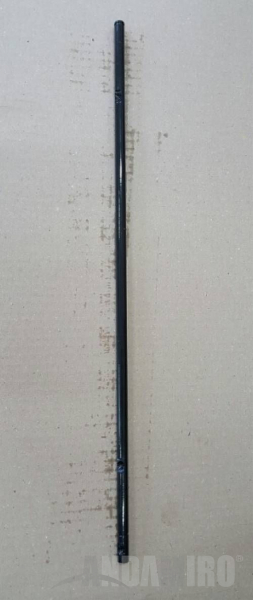

X-MOTOR-SHAFT
.
|
[PRO ASS'Y]
X-MOTOR-SHAFT
MGDM0PRO035
|
|
|
[PRO ASS'Y]

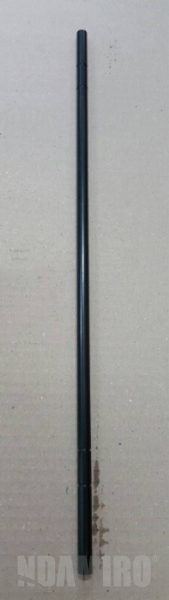

X-PULLY-SHAFT
.
|
[PRO ASS'Y]
X-PULLY-SHAFT
MGDM0PRO036
|
|
|
[PRO ASS'Y]

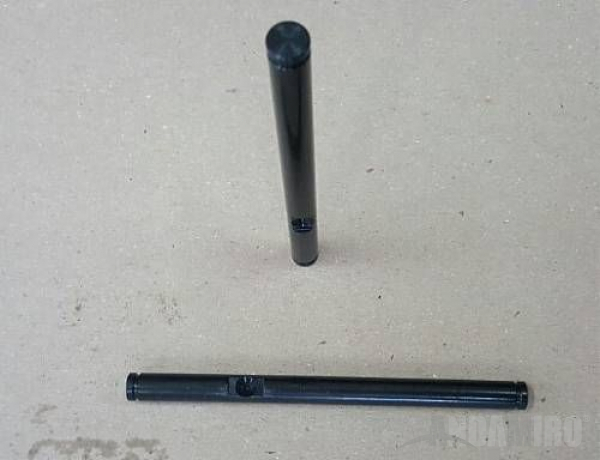

Y-PULLY-SHAFT
.
|
[PRO ASS'Y]
Y-PULLY-SHAFT
MGDM0PRO037
|
|
64 |
PUSH BUTTON SWITCH
DS-412R ROSH
|
PUSH BUTTON SWITCH
MELE0PUS006
|
|
65 |

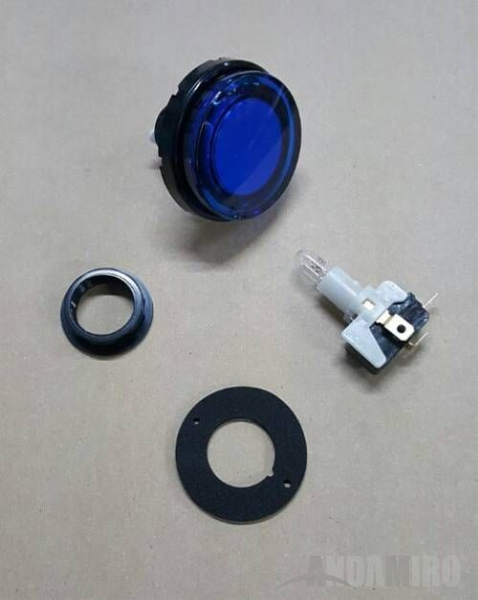

PUSH BUTTON SWITCH
CWB-411WP_BLUE
|
PUSH BUTTON SWITCH
MELE0PUS008
|
|
66 |
|
ROCKER SWITCH
MELE0SWI004
|
|
67 |
|
SMPS BKT
MZZZ0MEP048
|
|
68 |
|
SOCKET
MELE0SOC009
|
|
69 |
SPEAKER
MID4.5"+TW1/2" 8Ω
|
SPEAKER
MZZZ0SPE021
|
|
70 |
TERMINAL BLOCK
250V 10P UL_CE
|
TERMINAL BLOCK
MELE0TEB003
|
|
71 |
|
TICKET DISPENSER
MZZZ0TID008
|
|
72 |
|

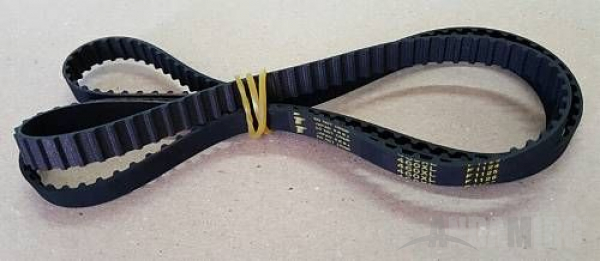

TIMMING BELT
MZZZ0BEL026
|
|
73 |

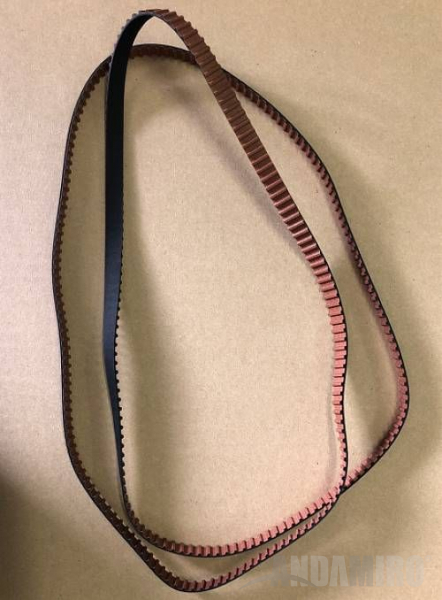

TIMMING BELT
592XL 037_9칸제거
|
TIMMING BELT
MZZZ0BEL027
|
|
74 |
|
VOLUME KNOB
MELE0VOL007
|
|
75 |
VOLUME PCB ASS'Y
1 VOLUME
|
VOLUME PCB ASS'Y
AHM20PCB016
|
|
76 |
|
WIRE
MZZZ0WIR011
|
